Product Summary
The sn74lvc1g14dckr is a single schmitt-trigger inverter. The sn74lvc1g14dckr single Schmitt-trigger inverter is designed for 1.65-V to 5.5-V Vcc operation. The sn74lvc1g14dckr is fully specified for partial-power-down applications using Ioff.
Parametrics
sn74lvc1g14dckr absolute maximum ratings: (1) Supply voltage range Vcc: -0.5 to 6.5V; (2) Input voltage range VI: -0.5 to 6.5V; (3) Voltage range applied to any output in the high-impedance or power-off state Vo: -0.5 to 6.5V; (4) Voltage range applied to any output in the high or low state Vo: -0.5 to Vcc +0.5V; (5) Input clamp current IOK: -50mA (VI< 0) ; (6) Output clamp current IOK: -50mA (VO< 0) ; (7) Continuous output current Io: ±50mA; (8) Continuous current through Vcc or GND: ±100mA; (9) Storage temperature range Tstg: -65 to +150°C.
Features
sn74lvc1g14dckr features: (1) Available in the Texas Instruments NanoStar and NanoFree Packages; (2) Supports 5-V VCC Operation; (3) Inputs Accept Voltages to 5.5V; (4) Max tpd of 3.7 ns at 3.3V; (5) Low Power Consumption, 10-μA Max ICC; (6) ±24-mA Output Drive at 3.3V; (7) Ioff Supports Partial-Power-Down Mode Operation; (8) ESD Protection Exceeds JESD 22.

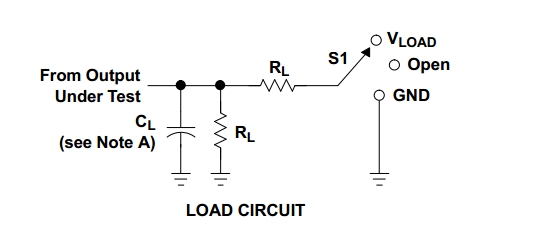

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() SN74LVC1G14DCKR |
![]() Texas Instruments |
![]() Inverters Single Schmitt Trig |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() SN74LVC1G14DCKRE4 |
![]() Texas Instruments |
![]() Inverters Single Schmitt Trig |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() SN74LVC1G14DCKRG4 |
![]() Texas Instruments |
![]() Inverters Single Schmitt Trig |
![]() Data Sheet |
![]()
|
|
