Product Summary
The SN74AHC1G08DCKR is a single 2-input positive-AND gate. The SN74AHC1G08DCKR performs the Boolean function Y=A.B or Y=A+B in positive logic.
Parametrics
SN74AHC1G08DCKR absolute maximum ratings: (1) Supply voltage range: -0.5 to 7V; (2) Input voltage range, VI: -0.5 to 7V; (3) Output voltage range, Vo: -0.5 to Vcc +0.5V; (4) Input clamp current, IIK (VI<0) : -20mA; (5) Output clamp current, IOK (Vo<0 or Vo > Vcc) : ±20mA; (6) Continuous output current, Io(Vo=0 to Vcc) : ±25mA; (7) Continuous current through Vcc or GND: ±50mA; (8) Storage temperature range, Tstg: -65 to 150°C.
Features
SN74AHC1G08DCKR features: (1) Operating Range of 2 V to 5.5V; (2) Max at tpd of 7ns at 5V; (3) Low Power Consumption, 10-μA Max ICC; (4) ±8-mA Output Drive at 5V; (5) Schmitt-Trigger Action at All Inputs Makes the Circuit Tolerant for Slower Input Rise and Fall Time; (6) Latch-Up Performance Exceeds 250 mA Per JESD 17; (7) ESD Protection Exceeds JESD 22.

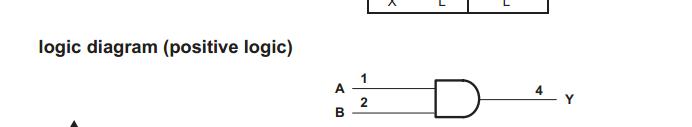

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN74AHC1G08DCKR |
Texas Instruments |
Gates (AND / NAND / OR / NOR) Single 2-Input |
Data Sheet |
|
|
||||||||||||
|
SN74AHC1G08DCKRE4 |
Texas Instruments |
Gates (AND / NAND / OR / NOR) Single 2-Input Pos AND Gate |
Data Sheet |
|
|
||||||||||||
|
SN74AHC1G08DCKRG4 |
Texas Instruments |
Gates (AND / NAND / OR / NOR) Single 2-Input |
Data Sheet |
|
|
||||||||||||
