Product Summary
The s-80923cnmc-g8t-t2 is a high-precision voltage detector developed using CMOS process. The detection voltage is fixed internally with an accuracy of ±2.0 %. A time delayed reset can be accomplished with the addition of an external capacitor. Two output forms, Nch open-drain and CMOS output, are available. It is ideal for: (1)Power supply monitor for portable equipment such as notebook PCs, digital still cameras, PDAs and cellular phones; (2)Constant voltage power monitor for cameras, video equipment and communication equipment; (3)Power monitor and reset for CPUs and microcomputers .
Parametrics
s-80923cnmc-g8t-t2 absolute maximum ratings: (1)Power supply voltage VDD-VSS: 12 V; (2)CD pin input voltage VCD: VSS-0.3 to VDD+0.3; (3)Output voltage Nch open-drain output products VOUT: VSS -0.3 to VSS+12 V; (4)Output current IOUT: 50 mA; (5)Power dissipation SOT-23-5 PD: 250 (When not mounted on board)600 *1 mW ; (6)Operating ambient temperature Topr: 40 to +85 °C; (7)Storage temperature Tstg: 40 to +125°C .
Features
s-80923cnmc-g8t-t2 features: (1)Ultra-low current consumption 1.0 μA typ. (Detection voltage ≤ 1.4 V, at VDD=2.0 V) 1.1 μA typ. (Detection voltage ≥ 1.5 V, at VDD=3.5 V); (2)High-precision detection voltage ±2.0 %; (3)Operating voltage range 0.7 V to 10.0 V; (4)Hysteresis characteristics 5 % typ.; (5)Detection voltage 1.3 V to 6.0 V (0.1 V step); (6)Output forms Nch open-drain output (Active Low) CMOS output (Active Low); (7)Lead-free products .

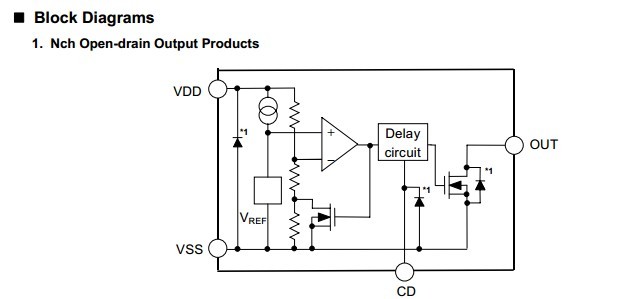

Diagrams
