Product Summary
The RD2.0S-T1-A is a 2 PIN Super Mini Mold Package zener diode. It possessing an allowable power dissipation of 200 mW. Application is circuit for constant voltage, constant current, wave form clipper, surge absorber, etc.
Parametrics
RD2.0S-T1-A absolute maximum ratings: (1)Power Dissipation: 200 mW; (2)Forward Current: 100 mA; (3)Reverse Surge Power: 85 W (at t=10 ms/1 pulse)Show Fig. 12; (4)Junction Temperature: 150 °C; (5)Storage Temperature: –55 to +150 °C.
Features
RD2.0S-T1-A features: (1)Sharp Breakdown characteristic; (2)Vz: Applied E24 standard.

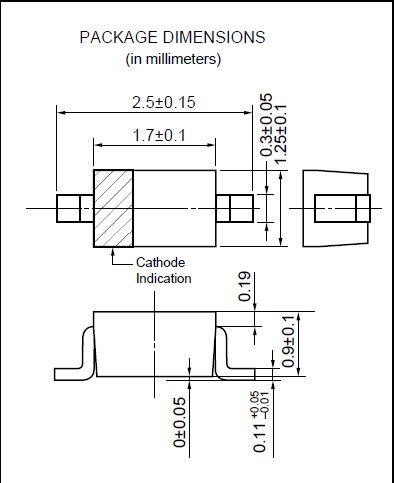

Diagrams
