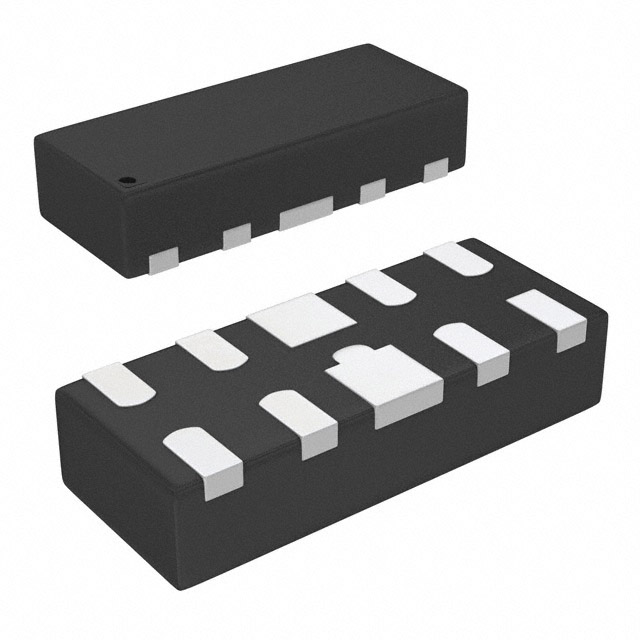

RCLAMP0524P

RCLAMP0524P, To, ultra low capacitance tvs arrays, 150 W, 5 A

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.11~0.11 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 3000 :	0.11 / Piece

PartNumber:: RCLAMP0524P

Brand:: Semtech Corporation - Semtech | Pack: | D/C: 09+

Availability:: Supply Ability: 3000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-30

From Other Seller

Part Number:RCLAMP0524P
US $0.11 - 0.11
Quantity:

piece

Product Summary

The rclamp0524p is an ultra low-capacitance tvs array. The rclamp0524p has a typical capacitance of only 0.30pF between I/O pins. This allows it to be used on circuits operating in excess of 3GHz without signal attenuation. They may be used to meet the ESD immunity requirements of IEC 61000-4-2, Level 4 (±15kV air, ±8kV contact discharge). The rclamp0524p can be applied in high definition multi-media interface (hdmi), digital visual interface (dvi), unified display interface (udi), displayport interface, mddi ports, pci express, and serial ata.

Parametrics

rclamp0524p absolute maximum ratings: (1)Peak Pulse Power (tp = 8/20μs): 150 Watts; (2)Peak Pulse Current (tp = 8/20μs): 5 A; (3)ESD per IEC 61000-4-2 (Contact): +/-12KV; (4)Operating Temperature: -55 to +125°C; (5)Storage Temperature: -55 to +150°C.

Features

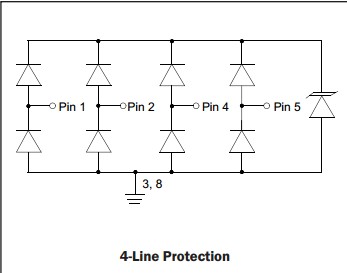

rclamp0524p features: (1)ESD protection for high-speed data lines to: IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)/IEC 61000-4-5 (Lightning) 5A (8/20μs); (2)/IEC 61000-4-4 (EFT) 40A (5/50ns); (3)Package design optimized for high speed lines; (4)Flow-Through design; (5)Protects two or four I/O lines; (6)Low capacitance: 0.3pF typical (I/O to I/O); (7)Low clamping voltage; (8)Low operating voltage: 5V; (9)Solid-state silicon-avalanche technology.
