Product Summary
The PMBT3904 is an NPN switching transistor. Application is telephony and professional communication equipment.
Parametrics
PMBT3904 absolute maximum ratings: (1)Collector-base voltage: 60 V; (2)Collector-emitter voltage: 40 V; (3)Emitter-base voltage: 6 V; (4)Collector current (DC): 100 mA; (5)Peak collector current: 200 mA; (6)Peak base current: 100 mA; (7)Total power dissipation: 250 mW; (8)Storage temperature: -65 to +150 °C; (9)Junction temperature: 150 °C; (10)Operating ambient temperature: -65 to +150 °C.
Features
PMBT3904 features: (1)Low current (max. 100 mA); (2)Low voltage (max. 40 V).

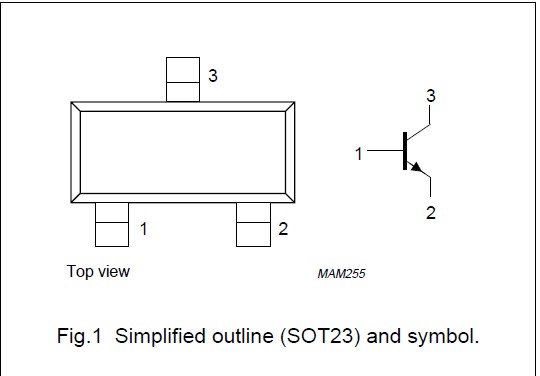

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PMBT3904 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
PMBT3904 /T3 |
NXP Semiconductors |
Transistors Bipolar (BJT) TRANS SW TAPE-11 |
Data Sheet |
Negotiable |
|
||||||||||||
|
PMBT3904,235 |
NXP Semiconductors |
Transistors Bipolar (BJT) TRANS SW TAPE-11 |
Data Sheet |
|
|
||||||||||||
|
PMBT3904,215 |
NXP Semiconductors |
Transistors Bipolar (BJT) NPN SW 200MA 40V |
Data Sheet |
|
|
||||||||||||
|
PMBT3904M,315 |
NXP Semiconductors |
Transistors Bipolar (BJT) GENERAL PURPOSE TRANSISTOR |
Data Sheet |
|
|
||||||||||||
|
PMBT3904D |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
PMBT3904VS,115 |
NXP Semiconductors |
Transistors Bipolar (BJT) GENERAL PURPOSE TRANSISTOR |
Data Sheet |
|
|
||||||||||||
|
PMBT3904YS,115 |
NXP Semiconductors |
Transistors Bipolar (BJT) GENERAL PURPOSE TRANSISTOR |
Data Sheet |
|
|
||||||||||||
