Product Summary
The NJM4580M-TE1 is a dual operational amplifier, specially designed for improving the tone control, which is most suitable for the audio application. Featuring noiseless, higher gain bandwidth, high output current and low distortion ratio, and it is most suitable not only for acoustic electronic parts of audio pre-amp and active filter, but also for the industrial measurement tools.
Parametrics
NJM4580M-TE1 absolute maximum ratings: (1)Supply voltage, V+/V-: ±18V; (2)Input voltage, VIC: ±15V; (3)Differential input voltage, VID: ±30V; (4)Output current, ID: ±50mA; (5)Power dissipation, PD: 800mW; (6)Operating temperature range, Topr: -40 to 85℃; (7)Storage temperature range, Tstg: -40 to 125℃.
Features
NJM4580M-TE1 features: (1)Operating voltage: ±2V to ±18V; (2)Low input noise voltage: 0.8μVrms typ; (3)Wide gain bandwidth product: 15MHz typ; (4)Low distortion: 0.0005% typ; (5)Slew rate: 5V/μs typ; (6)Package outline: DIP8, SIP8, EMP8, SSOP8, DMP8; (7)Bopolar technology.

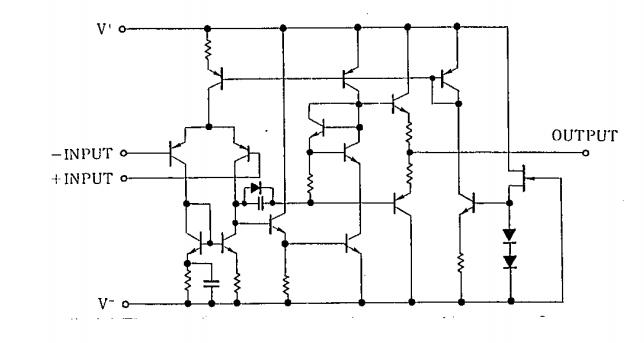

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NJM4580M-TE1 |
NJR |
Operational Amplifiers - Op Amps Dual |
Data Sheet |
|
|
||||||||||||
