Product Summary
The njm2561f1 is a low voltage video amplifier with LPF.
Parametrics
njm2561f1 absolute maximum ratings: (1)Power dissipation, PD: 260mW; (2)Supply voltage: 7V; (3)Operating temeprature range: -40 to 85℃; (4)Storage temperature range: -40 to 125℃.
Features
njm2561f1 features: (1)Operating voltage: 2.8 to 5.5V; (2)6dB amplifier; (3)75Ω drivers circuit; (4)Power save circuit; (5)Bipolar technology; (6)Package outline

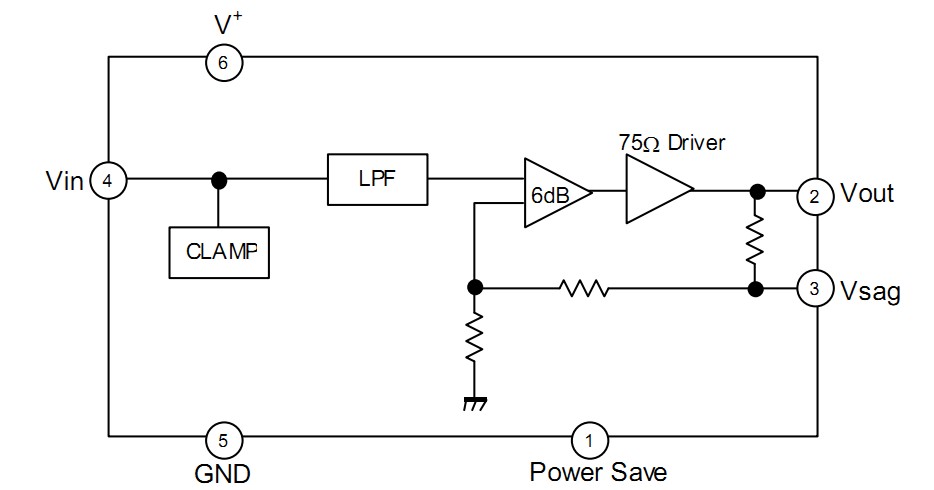

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NJM2561F1 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
 |
NJM2561F1-TE1 |
NJR |
Video Amplifiers Lw V Amp w/LPF |
Data Sheet |
|
|
||||||
|
NJM2561F1-TE2 |
NJR |
Video Amplifiers Low Volt Video Amp with LPF |
Data Sheet |
|
|
||||||
