Product Summary
The njm2336cf1 is a voltage and current control IC which contains precision voltage reference. It is suitable for battery charger, second controller of switching regulator systems, and other battery systems.
Parametrics
njm2336cf1 absolute maximum ratings: (1)Supply Voltage V +: +14 V; (2)Differential Input Voltage VID ( Ach ): 14 V; (3)Power Dissipation PD: 200 mW; (4)PC Terminal Current IPC: 20 mA; (5)Operating Temperature Range Topr: -40 to +85 °C; (6)Storage Temperature Range Tstg: -50 to +150 °C.
Features
njm2336cf1 features: (1)Operating Voltage: 2.2V to 13V; (2)Internal Precision Voltage Reference: 1.24V±1%; (3)Photo Coupler ( PC )Drive Current: 20mA max.; (4)Operating Current: 350µA max.; (5)Bipolar Technology; (6)Package Outline MTP6 .

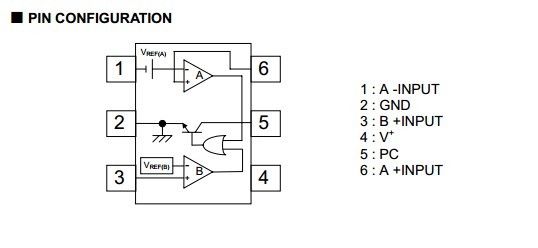

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NJM2336CF1-TE1 |
NJR |
Battery Management Battery Charger IC |
Data Sheet |
|
|
||||||||
|
NJM2336CF1-TE2 |
NJR |
Battery Management Battery Charger IC |
Data Sheet |
|
|
||||||||
