Product Summary

The ncp2890dmr2g is an audio power amplifier designed for portable communication device applications such as mobile phone applications. The ncp2890dmr2g is capable of delivering 1.0 W of continuous average power to an 8.0Ω BTL load from a 5.0 V power supply, and 320 mW to a 4.0 Ω BTL load from a 2.6 V power supply. The ncp2890dmr2g provides high quality audio while requiring few external components and minimal power consumption. It features a low-power consumption shutdown mode, which is achieved by driving the SHUTDOWN pin with logic low. Applications are (1)Portable Electronic Devices; (2)PDAs; (3)Wireless Phones.

Parametrics

ncp2890dmr2g absolute maximum ratings: (1)Supply Voltage Vp: 6.0 V; (2)Operating Supply Voltage Op Vp: 2.2 to 5.5 V; (3)Input Voltage Vin: -0.3 to Vcc +0.3 V; (4)Max Output Current Iout: 500 mA; (5)Operating Ambient Temperature TA: -40 to +85 °C; (6)Max Junction Temperature TJ: 150 °C; (7)Storage Temperature Range Tstg: -65 to +150 °C.

Features

ncp2890dmr2g features: (1)Pb-Free Packages are Available; (2)1.0 W to an 8.0 Ω BTL Load from a 5.0 V Power Supply; (3)Excellent PSRR: Direct Connection to the Battery; (4)“Pop and Click” Noise Protection Circuit; (5)Ultra Low Current Shutdown Mode; (6)2.2 V-5.5 V Operation; (7)External Gain Configuration Capability; (8)External Turn-on and Turn-off Time Configuration Capability; (9)Up to 1.0 nF Capacitive Load Driving Capability; (10)Thermal Overload Protection Circuitry.

Diagrams

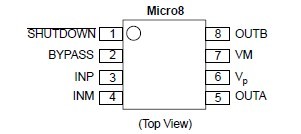

ncp2890dmr2g pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
NCP2890DMR2G
NCP2890DMR2G
ON Semiconductor
Audio Amplifiers 1W Audio Power Industrial Temp
Data Sheet
0-2600: $0.17
2600-4000: $0.17
4000-5000: $0.16
5000-10000: $0.15
