MX25L8006EM1I-12G

MX25L8006EM1I-12G, CMOS serial flash, 4.6V, 6 pF, 100mA, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.24~0.24 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 5000 :	0.24 / Piece

PartNumber:: MX25L8006EM1I-12G

Brand:: Macronix International - MXIC | Pack: | D/C: 10+

Availability:: Supply Ability: 5000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-22

From Other Seller

Part Number:MX25L8006EM1I-12G
US $0.24 - 0.24
Quantity:

piece

Product Summary

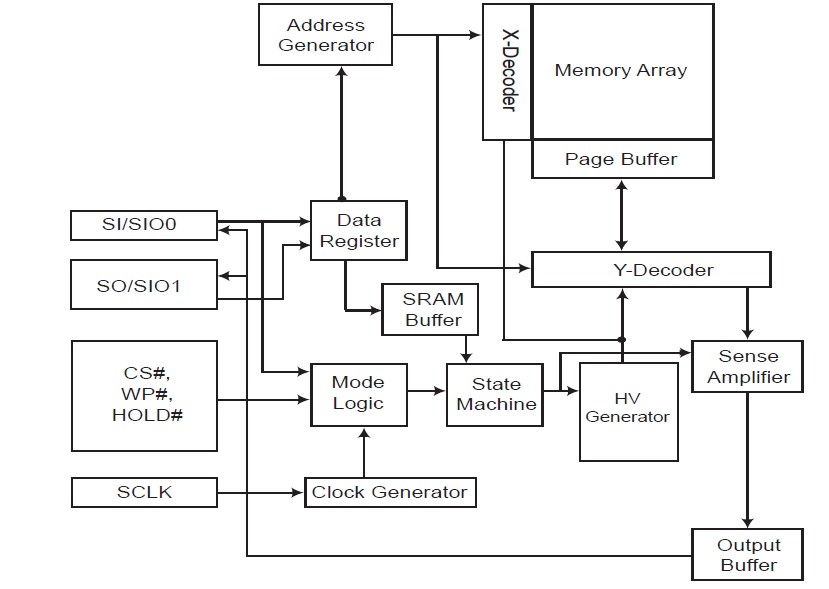

The MX25L8006EM1I-12G is a CMOS serial flash. The MX25L8006EM1I-12G features a serial peripheral interface and software protocol allowing operation on a simple 3-wire bus. The three bus signals are a clock input (SCLK), a serial data input (SI), and a serial data output (SO). Serial access to the device is enabled by CS# input. When the MX25L8006EM1I-12G is in dual output read mode, the SI and SO pins become SIO0 and SIO1 pins for data output. The device provides sequential read operation on whole chip. After program/erase command is issued, auto program/erase algorithms which program/erase and verify the specified page or sector/block locations will be executed. Program command is executed on byte basis, or page basis, or word basis for erase command is executes on sector, or block, or whole chip basis.

Parametrics

MX25L8006EM1I-12G absolute maximum ratings: (1)Ambient operating temperature,industrial grade: -40°C to 85°C; (2)Storage temperature: -55°C to 125°C; (3)Applied input voltage: -0.5V to 4.6V; (4)Applied output voltage: -0.5V to 4.6V; (5)VCC to ground potential: -0.5V to 4.6V.

Features

MX25L8006EM1I-12G features: (1)Single power supply operation: 2.7 to 3.6 volt for read, erase, and program operations; (2)Serial peripheral interface compatible: Mode 0 and mode 3; (3)8,388,608 x 1 bit structure or 4,194,304 x 2 bits (dual output mode)structure; (4)256 equal sectors with 4K byte each: Any sector can be erased individually; (5)16 equal blocks with 64K byte each: Any block can be erased individually; (6)Program capability: Byte base; Page base (256 bytes); (7)Latch-up protected to 100mA from -1V to Vcc +1V.
