Product Summary
The MOC8104FP2 is a 6-Pin DIP optoisolators for power supply applications(No base connection). Applications are (1)Switchmode Power Supplies (Feedback Control); (2)AC Line/Digital Logic Isolation; (3)Interfacing and coupling systems of different potentials and impedances.
Parametrics
MOC8104FP2 absolute maximum ratings: (1)Forward Current — Continuous: 60 mA; (2)Forward Current — Peak (PW = 100 ms, 120 pps): 1 A; (3)Reverse Voltage: 6 Volts; (4)LED Power Dissipation @ TA = 25°C: 120 mW; (5)Derate above 25°C: 1.41 mW/°C; (6)Collector–Emitter Voltage: 30 Volts; (7)Emitter–Collector Voltage: 7 Volts; (8)Collector Current — Continuous: 150 mA; (9)Detector Power Dissipation @ TA = 25°C: 150 mW; (10)Derate above 25°C: 1.76 mW/°C; (11)Input–Output Isolation Voltage(1)(f = 60 Hz, t = 1 sec): 7500 Vac(pk); (12)Total Device Power Dissipation @ TA = 25°C: 250 mW; (13)Derate above 25°C: 2.94 mW/°C; (14)Ambient Operating Temperature Range(2): –55 to +100 °C; (15)Storage Temperature Range(2): –55 to +150 °C; (16)Lead Soldering Temperature (1/16, from case, 10 sec. duration): 260 °C.
Features
MOC8104FP2 features: (1)Closely Matched Current Transfer Ratio (CTR)Minimizes Unit–to–Unit Variation; (2)Narrow (CTR)Windows that translate to a Narrow and Predictable Open Loop Gain Window; (3)Very Low Coupled Capacitance along with No Chip to Pin 6 Base Connection for Minimum Noise Susceptibility; (4)To order devices that are tested and marked per VDE 0884 requirements, the suffix “V” must be included at end of part number. VDE 0884 is a test option.

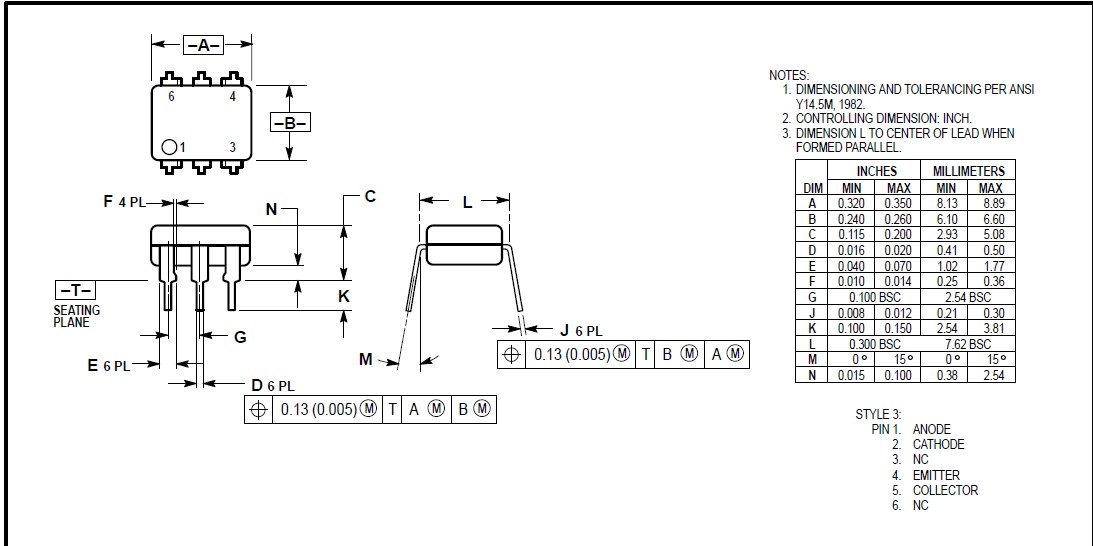

Diagrams
