Product Summary
The mm74hc04mtc is a hex inverter. The mm74hc04mtc utilizes advanced silicon-gate CMOS technology to achieve operating speeds similar to LS-TTL gates with the low power consumption of standard CMOS integrated circuits. The mm74hc04mtc is a triple buffered inverter. It has high noise immunity and the ability to drive 10 LS-TTL loads. The 74HC logic family is functionally as well as pin-out compatible with the standard 74LS logic family. All inputs are protected from damage due to static discharge by internal diode clamps to VCC and ground.
Parametrics
mm74hc04mtc absolute maximum ratings: (1)Supply Voltage (VCC): -0.5V to +7.0V; (2)DC Input Voltage (VIN): -1.5V to VCC +1.5V; (3)DC Output Voltage (VOUT): -0.5V to VCC +0.5V; (4)Clamp Diode Current (IIK, IOK): ±20mA; (5)DC Output Current, per pin (IOUT): ±25mA; (6)DC VCC or GND Current, per pin (ICC): ±50mA; (7)Storage Temperature Range (TSTG): -65℃ to +150℃; (8)Power Dissipation (PD): 600mW, S.O. Package only 500mW; (9) Lead Temperature (TL) (Soldering 10 seconds): 260℃.
Features
mm74hc04mtc features: (1) Typical propagation delay: 8 ns; (2) Fan out of 10 LS-TTL loads; (3)Quiescent power consumption: 10μW maximum at room temperature; (4)Low input current: 1μA maximum.

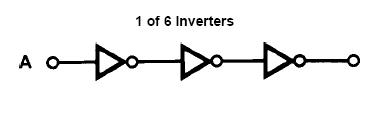

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MM74HC04MTC |
Fairchild Semiconductor |
Inverters Hex Inverter |
Data Sheet |
|
|
||||||||||||
|
MM74HC04MTC_Q |
Fairchild Semiconductor |
Inverters Hex Inverter |
Data Sheet |
Negotiable |
|
||||||||||||
|
MM74HC04MTCX |
Fairchild Semiconductor |
Inverters Hex Inverter |
Data Sheet |
|
|
||||||||||||
