Product Summary
The mic39102bm is a 1A low-dropout linear voltage regulator that provides low-voltage, high-current output from an extremely small package. Utilizing Micrel’s proprietary Super βeta PNP. pass element, the mic39102bm offers extremely low dropout (typically 410mV at 1A) and low ground current (typically 11mA at 1A). The applications of the mic39102bm include LDO linear regulator for PC add-in cards, PowerPC power supplies, High-efficiency linear power supplies, SMPS post regulator, Multimedia and PC processor supplies, Battery chargers, Low-voltage microcontrollers and digital logic.
Parametrics
mic39102bm absolute maximum ratings: (1)Supply Voltage (VIN): -20V to +20V; (2)Enable Voltage (VEN): +20V; (3)Storage Temperature (TS): -65℃ to +150℃; (4)Lead Temperature (soldering, 5 sec.): 260℃.
Features
mic39102bm features: (1)Fixed and adjustable output voltages to 1.24V; (2)410mV typical dropout at 1A, Ideal for 3.0V to 2.5V conversion; Ideal for 2.5V to 1.8V conversion; (3)1A minimum guaranteed output current; (4)1% initial accuracy; (5)Low ground current; (6)Current limiting and thermal shutdown; (7)Reversed-battery protection; (8)Reversed-leakage protection; (9)Fast transient response; (10)Low-profile SOT-223 package; (11)Power SO-8 package.

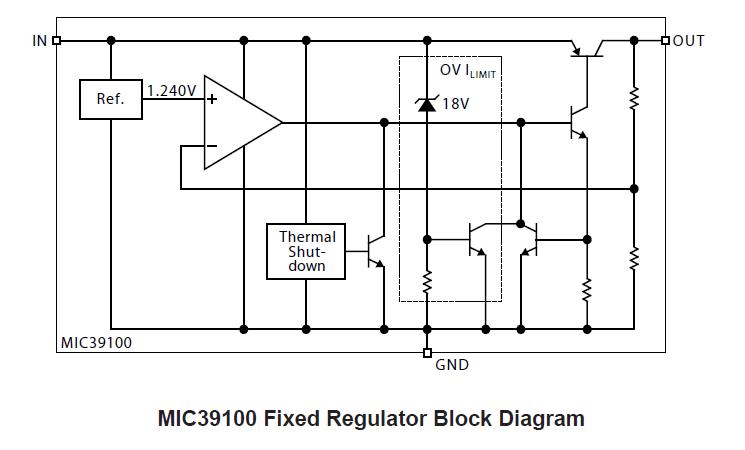

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MIC39102BM |
|
IC REG LDO ADJ 1A 8SOIC |
Data Sheet |
Negotiable |
|
||||
|
MIC39102BM TR |
|
IC REG LDO ADJ 1A 8-SOIC |
Data Sheet |
Negotiable |
|
||||
