The MCM6226BBXJ15R is a 1048576 bit static random access memory organized as 131072 words of 8 bits. Static design eliminates the need for external clocks or timing strobes while CMOS circuitry reduces power consumption and provides for greater reliability. The MCM6226BBXJ15R is equipped with both chip enable (E1 and E2) and output enable (G) pins, allowing for greater system flexibility and eliminating bus contention problems. The MCM6226BBXJ15R is available in 300 mil and 400 mil, 32 lead surface–mount SOJ packages.
Parametrics
MCM6226BBXJ15R absolute maximum ratings: (1)Power Supply Voltage Relative to VSS: – 0.5 to 7.0 V; (2)Voltage Relative to VSS for Any Pin Except VCC: – 0.5 to VCC + 0.5 V; (3)Output Current (per I/O): ± 20 mA; (4)Power Dissipation: 1.0 W; (5)Temperature Under Bias: – 10 to + 85 °C; (6)Operating Temperature: 0 to + 70 °C; (7)Storage Temperature: – 55 to + 150 °C.
Features
MCM6226BBXJ15R features: (1)Single 5 V ± 10% Power Supply; (2)Fast Access Times: 15/17/20/25/35 ns; (3)Equal Address and Chip Enable Access Times; (4)All Inputs and Outputs are TTL Compatible; (5)Three State Outputs; (6)Low Power Operation: 190/180/165/150/130 mA Maximum, Active AC.

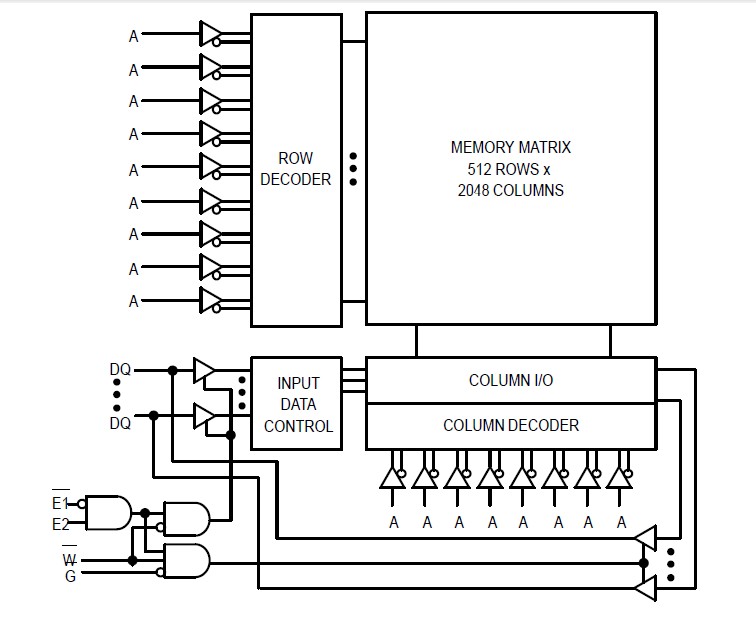

Diagrams
