Product Summary

The MC9S12DJ128BCFU is a 16-bit microcontroller. The MC9S12DJ128BCFU is composed of standard on-chip peripherals including a 16-bit central processing unit (HCS12 CPU), 128K bytes of Flash EEPROM, 8K bytes of RAM, 2K bytes of EEPROM, two asynchronous serial communications interfaces (SCI) , two serial peripheral interfaces (SPI) , an 8-channel IC/OC enhanced capture timer, two 8-channel, 10-bit analog-to-digital converters (ADC) , an 8-channel pulse-width modulator (PWM), a digital Byte Data Link Controller (BDLC) , 29 discrete digital I/O channels (Port A, Port B, Port K and Port E), 20 discrete digital I/O lines with interrupt and wakeup capability, three CAN 2.0 A, B software compatible modules (MSCAN12) , a Byteflight module and an Inter-IC Bus. The MC9S12DJ128BCFU has full 16-bit data paths throughout.

Parametrics

MC9S12DJ128BCFU absolute maximum ratings: (1) I/O, Regulator and Analog Supply Voltage VDD5: -0.3 to 6.0V; (2) Digital Logic Supply Voltage VDD: -0.3 to 3.0V; (3) PLL Supply Voltage VDDPLL: -0.3 to 3.0V; (4) Voltage difference VDDX to VDDR and VDDA VDDX: -0.3 to 0.3V; (5) Digital I/O Input Voltage VIN: -0.3 to 6.0V; (6) Instantaneous Maximum Current Single pin limit for all digital I/O pins ID: -25 to +25mA; (7) Instantaneous Maximum Current Single pin limit for XFC, EXTAL, XTAL, IDL: -25 to +25mA; (8) Instantaneous Maximum Current Single pin limit for TEST IDT: -0.25 to 0mA; (9) Storage Temperature Range Tstg: -65 to 155°C.

Features

MC9S12DJ128BCFU features: (1) HCS12 Core; (2) CRG (Clock and Reset Generator) ; (3) 8-bit and 4-bit ports with interrupt functionality; (4) Two 8-channel Analog-to-Digital Converters; (5) Enhanced Capture Timer; (6) Byte Data Link Controller (BDLC) ; (7) 112-Pin LQFP and 80-Pin QFP package options; (8) Low power modes.

Diagrams

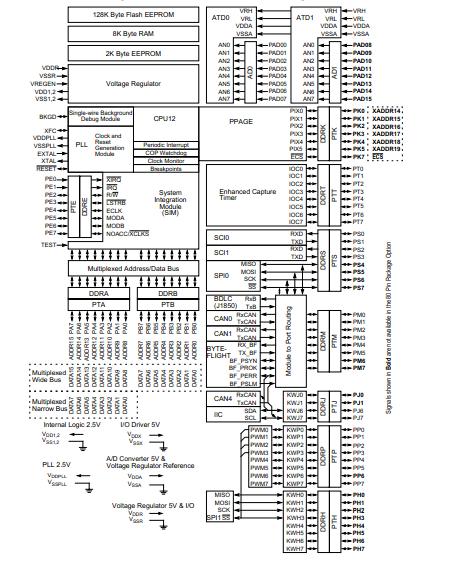

MC9S12DJ128BCFU Block Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MC9S12DJ128BCFU
MC9S12DJ128BCFU
Freescale Semiconductor
16-bit Microcontrollers (MCU) 16 Bit 25MHz
Data Sheet
Negotiable
