Product Summary
The mc79l05acdrg4 is a negative voltage regulator which is an inexpensive, easy to use device suitable for numerous applications requiring up to 100 mA. Like the higher powered MC7900 Series negative regulators, the mc79l05acdrg4 features thermal shutdown and current limiting, making them remarkably rugged. In most applications, no external components are required for operation. The mc79l05acdrg4 is useful for card regulation or any other application where a regulated negative voltage at a modest current level is needed. The mc79l05acdrg4 offers substantial advantage over the common resistor/Zener diode approach.
Parametrics
mc79l05acdrg4 absolute maximum ratings: (1)Input Voltage (-5 V) VI: -30 Vdc; (2)Input Voltage (-12, -15, -18 V) VI: -35 Vdc; (3)Input Voltage (-24 V) VI: -40 Vdc; (4)Power Dissipation TA = 25℃ PD: Internally Limited; (5)Power Dissipation Thermal Resistance, Junction-to-Ambient RθJA: 180℃/W; (6)Power Dissipation Thermal Resistance, Junction-to-Case RθJC: 45℃/W; (7)Storage Temperature Range Tstg: -65 to +150 ℃; (8)Junction Temperature TJ: +150 ℃.
Features
mc79l05acdrg4 features: (1)No External Components Required; (2)Internal Short Circuit Current Limiting; (3)Internal Thermal Overload Protection; (4)Low Cost; (5)Pb-Free Packages are Available.

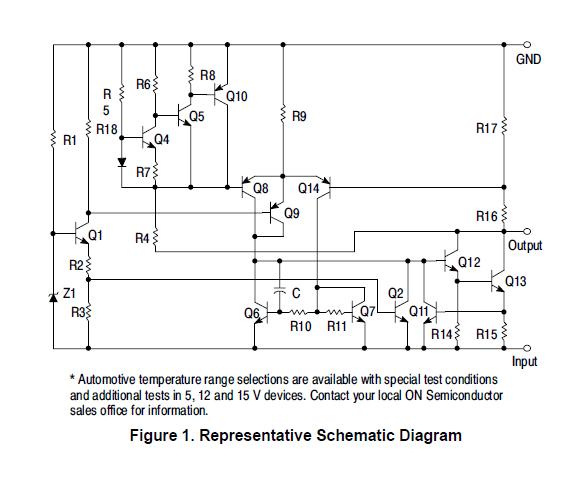

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() MC79L05ACDRG4 |
![]() Texas Instruments |
![]() Linear Regulators - Standard 5V 100mA Fixed Neg Voltage Regulator |
![]() Data Sheet |
![]()
|
|
||||||||||||
