Product Summary
The mc74ac125dtr2 is a quad buffer with 3-state outputs.
Parametrics
mc74ac125dtr2 absolute maximum ratings: (1)VCC, DC supply voltage (referenced to GND): –0.5 to +7.0 V; (2)Vin, DC input voltage (referenced to GND): –0.5 to VCC + 0.5 V; (3)Vout, DC output voltage (referenced to GND): –0.5 to VCC + 0.5 V; (4)Iin, DC input current, per pin: ± 20 mA; (5)Iout, DC output sink/source current, per pin: ± 50 mA; (6)ICC, DC VCC or GND current per output pin: ± 50 mA; (7)Tstg, storage temperature: –65 to +150 °C.
Features
mc74ac125dtr2 features: (1)Outputs source/sink; (2)4ACT125 Has TTL compatible inputs.

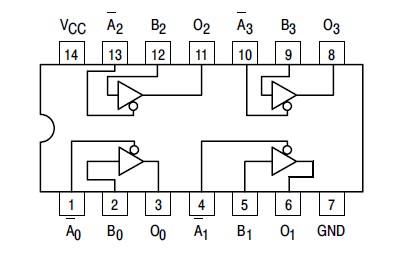

Diagrams
