Product Summary
The mc14541bdr2g is a programmable timer. The mc14541bdr2g consists of a 16–stage binary counter, an integrated oscillator for use with an external capacitor and two resistors, an automatic power-on reset circuit, and output control logic. Timing is initialized by turning on power, whereupon the power-on reset is enabled and initializes the counter, within the specified VDD range. With the power already on, an external reset pulse can be applied. Upon release of the initial reset command, the oscillator will oscillate with a frequency determined by the external RC network.
Parametrics
mc14541bdr2g absolute maximum ratings: (1)VDD, DC Supply Voltage Range: –0.5 to +18.0 V; (2)Vin, Vout, Input or Output Voltage Range (DC or Transient): –0.5 to VDD + 0.5 V; (3)Iin, Input Current (DC or Transient): ±10 (per Pin) mA; (4)Iout, Output Current (DC or Transient): ±45 (per Pin) mA; (5)PD, Power Dissipation, per Package: 500 mW; (6)TA, Ambient Temperature Range: –55 to +125℃; (7)Tstg, Storage Temperature Range: –65 to +150℃; (8)TL, Lead Temperature (8–Second Soldering): 260℃.
Features
mc14541bdr2g features: (1)Available Outputs 28, 210, 213 or 216; (2)Increments on Positive Edge Clock Transitions; (3)Built–in Low Power RC Oscillator (± 2% accuracy over temperature range and ± 20% supply and ± 3% over processing at < 10 kHz); (4)Oscillator May Be Bypassed if External Clock Is Available (Apply external clock to Pin 3); (5)External Master Reset Totally Independent of Automatic Reset Operation; (6)Operates as 2n Frequency Divider or Single Transition Timer; (7)Q/Q Select Provides Output Logic Level Flexibility; (8)Reset (auto or master) Disables Oscillator During Resetting to Provide No Active Power Dissipation; (9)Clock Conditioning Circuit Permits Operation with Very Slow Clock Rise and Fall Times; (10)Automatic Reset Initializes All Counters On Power Up.

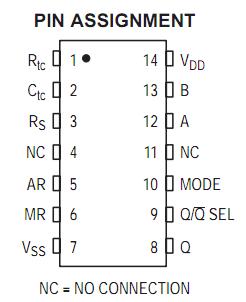

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC14541BDR2G |
ON Semiconductor |
Timers & Support Products LOG CMOS OSILATR TIMER |
Data Sheet |
|
|
||||||||||||||||
