Product Summary
The mc14066bdtr2g consists of four independent switches capable of controlling either digital or analog signals. This quad bilateral switch is useful in signal gating, chopper, modulator, demodulator and CMOS logic implementation. The mc14066bdtr2g is designed to be pin–for–pin compatible with the mc14066bdtr2g, but has much lower ON resistance. Input voltage swings as large as the full supply voltage can be controlled via each independent control input.
Parametrics
mc14066bdtr2g absolute maximum ratings: (1)DC Supply Voltage Range: –0.5 to +18.0 V; (2)Input or Output Voltage Range (DC or Transient): –0.5 to VDD + 0.5 V; (3)Input Current (DC or Transient)per Control Pin: ±10 mA; (4)Switch Through Current : ±25 mA; (5)Power Dissipation, per Package (Note 3): 500 mW; (6)Ambient Temperature Range: –55 to +125 °C; (7)Storage Temperature Range: –65 to +150 °C; (8)Lead Temperature (8–Second Soldering): 260 °C.
Features
mc14066bdtr2g features: (1)Triple Diode Protection on All Control Inputs; (2)Supply Voltage Range = 3.0 Vdc to 18 Vdc; (3)Linearized Transfer Characteristics; (4)Low Noise — 12 nV//Cycle, f . 1.0 kHz typical; (5)Pin–for–Pin Replacement for CD4016, CD4016, MC14016B; (6)For Lower RON, Use The HC4066 High–Speed CMOS Device.

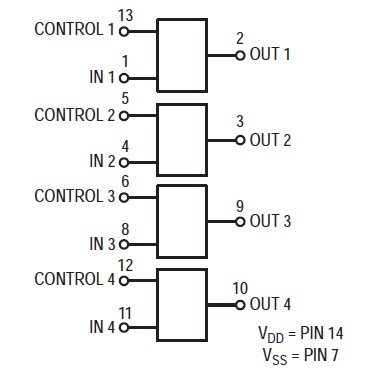

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC14066BDTR2G |
ON Semiconductor |
Multiplexer Switch ICs 3-18V Quad Analog SW -55 to 125deg C |
Data Sheet |
|
|
||||||||||||||||
