Product Summary
The mc14021bdr2g is an 8-bit static shift register which is constructed with MOS P-channel and N-channel enhancement modedevices in a single monolithic structure. These shift registers find primary use in parallel-to-serial data conversion, synchronous and asynchronous parallel input, serial output data queueing; and other general purpose register applications requiring low power and/or high noise immunity.
Parametrics
mc14021bdr2g absolute maximum ratings: (1)DC Supply Voltage Range: -0.5 to +18.0 V; (2)Input or Output Voltage Range(DC or Transient): -0.5 to VDD + 0.5 V; (3)Input or Output Current (DC or Transient) per Pin: ±10 mA; (4)Power Dissipation: 500 mW; (5)Ambient Temperature Range: -55 to +125°C; (6)Storage Temperature Range: -65 to +150°C; (7)Lead Temperature: 260°C.
Features
mc14021bdr2g features: (1)Synchronous Parallel Input/Serial Output (MC14014B); (2)Asynchronous Parallel Input/Serial Output (MC14021B); (3)Synchronous Serial Input/Serial Output; (4)Full Static Operation; (5)“Q” Outputs from Sixth, Seventh, and Eighth Stages; (6)Double Diode Input Protection; (7)Supply Voltage Range = 3.0 Vdc to 18 Vdc; (8)Capable of Driving Two Low power TTL Loads or One Low; (9)power Schottky TTL Load Over the Rated Temperature Range; (10)MC14014B Pin-for-Pin Replacement for CD4014B; (11)MC14021B Pin-for-Pin Replacement for CD4021B; (12)Pb-Free Packages are Available.

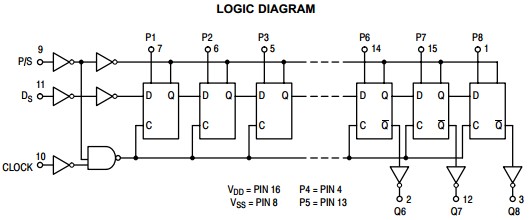

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC14021BDR2G |
ON Semiconductor |
Counter Shift Registers 3-18V 8-Bit CMOS Static Shift |
Data Sheet |
|
|
||||||||||||||||
