Product Summary

The mc10158fn is a quad two channel multiplexer. A common select input determines which data inputs are enabled. A high (H) level enables data inputs D00, D10, D20, and D30 and a low (L) level enables data inputs D01, D11, D21, and D31.

Features

mc10158fn features: (1)PD=197 mW typ/pkg (No Load); (2)tpd=2.5 ns typ (Data to Q); (3)3.2 ns typ (Select to Q); (4)tr, tf=2.5 ns typ (20%–80%).

Diagrams

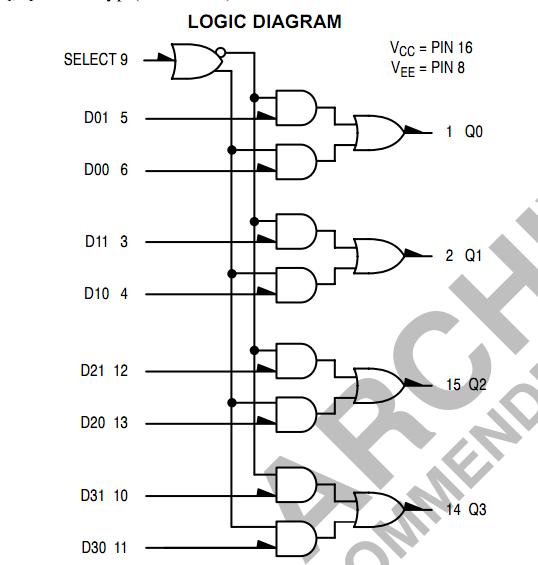

mc10158fn block diagram
