Product Summary
The mb3771pf-g-bnd-er- is a Power Supply Monitor. The mb3771pf-g-bnd-er- is designed to monitor the voltage level of one or two power supplies (+5 V and an arbitrary voltage) in a microprocessor circuit, memory board in large-size computer, for example. Thus, the computer data is protected from accidental erasure. Using the mb3771pf-g-bnd-er- requires few external components. To monitor only a +5 V supply, the mb3771pf-g-bnd-er- requires the connection of one external capacitor. The level of an arbitrary detection voltage is determined by two external resistors. The mb3771pf-g-bnd-er- is available in an 8-pin Dual In-Line, Single In-Line Package or space saving Flat Package.
Parametrics
mb3771pf-g-bnd-er- absolute maximum ratings: (1)Power supply voltage: -0.3 to 20 V; (2)Input voltage: -0.3 to 20 V; (3)Power dissipation: 200 mW; (4)Storage temperature: -55 to +125 ℃.
Features
mb3771pf-g-bnd-er- features: (1)Precision voltage detection (VSA = 4.2 V ±2.5 %); (2)User selectable threshold level with hysterisis (VSB = 1.23 V ±1.5 %); (3)Monitors the voltage of one or two power supplies (5 V and an arbitrary voltage, >1.23 V); (4)Usable as over voltage detector; (5)Low voltage output for reset signal (VCC = 0.8 V Typ); (6)Minimal number of external components (one capacitor Min); (7)Low power dissipation (ICC = 0.35 mA Typ, VCC = 5 V); (8)Detection threshold voltage has hysteresis function; (9)Reference voltage is connectable.

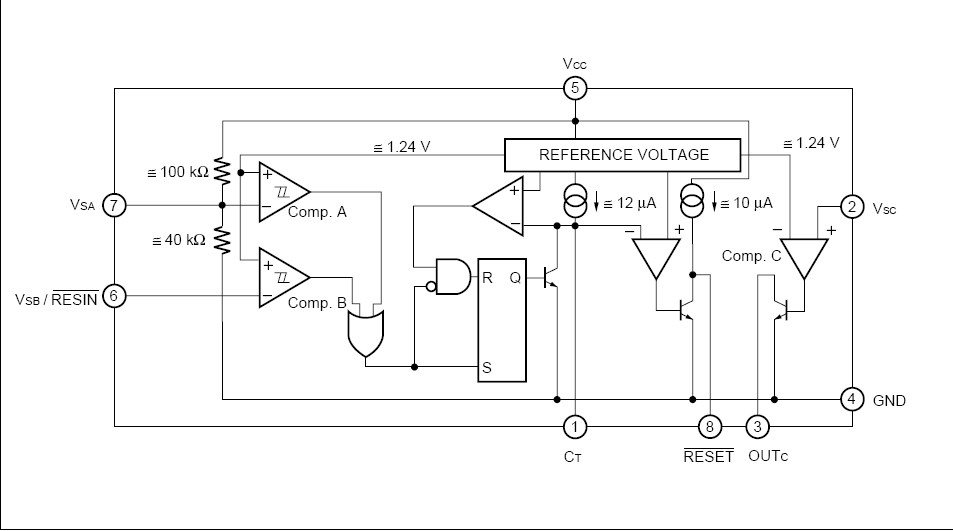

Diagrams
