MAX811SEUS+T

max811seus+t, microprocessor, 6.0V, 20mA, dip

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.23~0.23 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 2500 :	0.23 / Piece

PartNumber:: MAX811SEUS+T

Brand:: MAX ltd. - MAX | Pack: | D/C: 10+

Availability:: Supply Ability: 2500/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-22

From Other Seller

Part Number:MAX811SEUS+T
US $0.23 - 0.23
Quantity:

piece

Product Summary

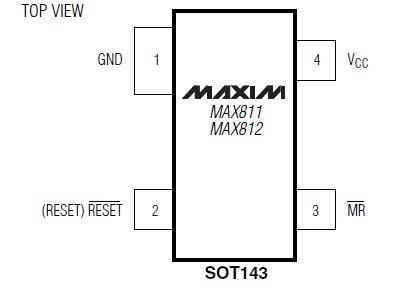

The max811seus+t is a low-power microprocessor (μP) supervisory circuit used to monitor power supplies in μP and digital systems. The max811seus+t provides excellent circuit reliability and low cost by eliminating external components and adjustments when used with 5V- powered or 3V-powered circuits. The max811seus+t also provides a debounced manual reset input. Low supply current makes it ideal for use in portable equipment. The device comes in a 4-pin SOT143 package. Applications include: Computers, Controllers, Intelligent Instruments, Critical μP and μC Power Monitoring, Portable/Battery-Powered Equipment.

Parametrics

max811seus+t absolute maximum ratings: (1)VCC: -0.3V to 6.0V; (2)All Other Inputs: -0.3V to (VCC + 0.3V); (3)Input Current, VCC, MR: 20mA; (4)Output Current, RESET or RESET: 20mA; (5)Operating Temperature Range: -40℃ to +85℃; (6)Storage Temperature Range: -65℃ to +160℃; (7)Lead Temperature (soldering, 10sec): +300℃.

Features

max811seus+t features: (1)Precision Monitoring of 3V, 3.3V, and 5V Power-Supply Voltages; (2)6μA Supply Current; (3)140ms Min Power-On Reset Pulse Width; RESET Output (MAX811); (4)Guaranteed Over Temperature; (5)Guaranteed RESET Valid to VCC = 1V (MAX811); (6)Power-Supply Transient Immunity; (7)No External Components; (8)4-Pin SOT143 Package.
