M54513FP

M54513FP, eight-circuit transistor array, 40 V, 50 mA, 1.10 W, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.55~1.55 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1574 :	1.55 / Piece

PartNumber:: M54513FP

Brand:: MITSUBISHI Electronics - MITSUBISHI | Pack: SOP | D/C: 02+

Availability:: Supply Ability: 100/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-07

From Other Seller

Part Number:M54513FP
US $1.55 - 1.55
Quantity:

piece

Product Summary

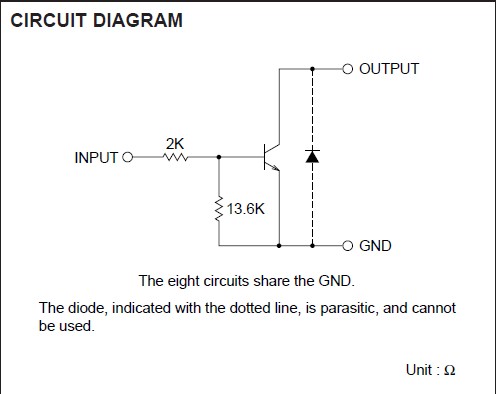

The M54513FP is an eight-circuit transistor array. The circuits is made of NPN transistor. Both the semiconductor integrated circuits perform high-current driving with extremely low input-current supply. Application is driving of digit drives of indication elements (LEDs and lamps) with small signals.

Parametrics

M54513FP absolute maximum ratings: (1)Collector-emitter voltage: –0.5 to +40 V; (2)Collector current: 50 mA; (3)Input voltage: –0.5 to +10 V; (4)Power dissipation: 1.10 W; (5)Operating temperature: –20 to +75 °C; (6)Storage temperature: –55 to +125 °C.

Features

M54513FP features: (1)High breakdown voltage (BVCEO 40V); (2)Synchronizing current (Ic(max)= 50mA); (3)Wide operating temperature range (Ta = –20 to +75°C).
