Product Summary

The lp8720tlx-b is a multi-function, programmable Power Man- agement Unit, optimized for sub block power requirement solution. This device integrates one highly efficient 400 mA step-down DC/DC converter with Dynamic Voltage Scale (DVS), five low noise low dropout (LDO) voltage regulators and a 400 KHz I2C-compatible interface to allow a host controller access to the internal control registers of the lp8720tlx-b. The lp8720tlx-b additionally features programmable power-on sequencing. The applications of the device are Cellular Handsets and Portable hand-held products.

Parametrics

lp8720tlx-b absolute maximum ratings: (1)VBATT = VINB, VBATT: -0.3V to +6V; (2)VIN1, VIN2: -0.3V to VBATT+0.15V, max 6V; (3)All other pins: -0.3V to VBATT+0.3V, max 6V; (4)Junction Temperature (TJ-MAX): 150oC; (5)Storage Temperature: -40 to 150oC; (6)Maximum Continuous Power Dissipation PD-MAX (Note 3) 1.75 W; (7)ESD (Note 4) 2 kV HBM; 200V MM.

Features

lp8720tlx-b features: (1)5 Low Noise LDOs for up to 300 mA; (2)One high-efficiency Synchronous Magnetic Buck; (3)Regulator, IOUT 400 mA; (4)High efficiency PFM mode @low I; (5)OUTAuto Mode PFM/PWM switch; (6)Low inductance 2.2 μH @ 2 MHz clock; (7)Dynamic Voltage Scale control; (8)I2C-compatible interface for the controlling of internal registers; (9)20–bump 2.5 x 2.0 mm micro SMD package.

Diagrams

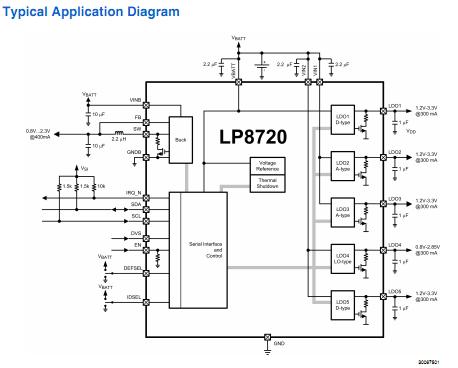

lp8720tlx-b block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LP8720TLX-B/NOPB
LP8720TLX-B/NOPB
National Semiconductor (TI)
Other Power Management
Data Sheet
0-2120: $0.89
2120-2500: $0.83
2500-3000: $0.83
3000-5000: $0.82
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LP8720TLE/NOPB
LP8720TLE/NOPB
National Semiconductor (TI)
Other Power Management
Data Sheet
0-1: $1.89
1-25: $1.54
25-100: $1.39
100-250: $1.16
LP8720TLE-B/NOPB
LP8720TLE-B/NOPB
National Semiconductor (TI)
Other Power Management
Data Sheet
0-1: $1.93
1-25: $1.57
25-100: $1.41
100-250: $1.28
LP8720TLX-B/NOPB
LP8720TLX-B/NOPB
National Semiconductor (TI)
Other Power Management
Data Sheet
0-2120: $0.89
2120-2500: $0.83
2500-3000: $0.83
3000-5000: $0.82
LP8725TLE/NOPB
LP8725TLE/NOPB
National Semiconductor (TI)
PMIC Solutions
Data Sheet
0-245: $1.36
245-250: $1.23
250-500: $1.10
500-1000: $0.89
LP8725TLE-A/NOPB
LP8725TLE-A/NOPB
National Semiconductor (TI)
PMIC Solutions
Data Sheet
0-245: $1.36
245-250: $1.23
250-500: $1.10
500-1000: $0.89
LP8725TLE-B/NOPB
LP8725TLE-B/NOPB
National Semiconductor (TI)
PMIC Solutions
Data Sheet
0-245: $1.36
245-250: $1.23
250-500: $1.10
500-1000: $0.89
