Product Summary
The lmv393mx is a CMOS single channel, general purpose, low voltage comparator. The lmv393mx is specified for 2.7 V to 5 V performance, has excellent input common-mode range, low quiescent current, and is available in several space saving packages. The applications of the lmv393mx include Battery Monitors, Notebooks and PDAs, General Purpose Portable Devices and General Purpose Low Voltage Applications.
Parametrics
lmv393mx absolute maximum ratings: (1)VS, Voltage on any Pin (referred to V- pin): 5.5 V; (2)VIDR, Input Differential Voltage Range: ±Supply Voltage; (3)TJ, Maximum Junction Temperature: 150 ℃; (4)Tstg, Storage Temperature Range: -65 to 150℃; (5)TL, Mounting Temperature (Infrared or Convection (1/16 inch From Case for 30 Seconds)) 260℃; (6)VESD ESD Tolerance: 100 V.
Features
lmv393mx features: (1)Guaranteed 2.7 V and 5 V Performance; (2)Input Common-mode Voltage Range Extends to Ground; (3)Open Drain Output for Wired-OR Applications; (4)Low Quiescent Current: 60 μA/channel TYP @ 5 V; (5)Low Saturation Voltage 200 mV TYP @ 5 V; (6)Propagation Delay 200 ns TYP @ 5 V; (7)These are Pb-Free Devices.

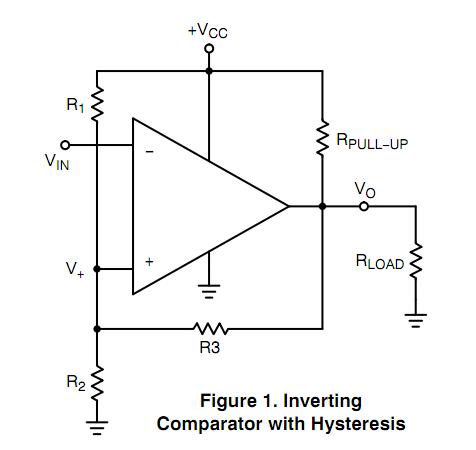

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LMV393MX |
National Semiconductor (TI) |
Comparator ICs |
Data Sheet |
|
|
||||||||||||
 |
LMV393MX/NOPB |
National Semiconductor (TI) |
Comparator ICs |
Data Sheet |
|
|
||||||||||||
