Product Summary

The LM56CIMX is a precision low power thermostat. Two stable temperature trip points (VT1 and VT2) are generated by dividing down the LM56CIMX 1.250V bandgap voltage reference using 3 external resistors. The LM56CIMX has two digital outputs. OUT1 goes LOW when the temperature exceeds T1 and goes HIGH when the the temperature goes below (T1–THYST). Similarly, OUT2 goes LOW when the temperature exceeds T2 and goes HIGH when the temperature goes below (T2–THYST). The applications of the LM56CIMX include Microprocessor Thermal Management, Appliances, Portable Battery Powered 3.0V or 5V Systems, Fan Control, Industrial Process Control, HVAC Systems, Remote Temperature Sensing, Electronic System Protection.

Parametrics

LM56CIMX absolute maximum ratings: (1)Input Voltage: 12V; (2)Input Current at any pin (Note 2): 5 mA; (3)Package Input Current(Note 2): 20 mA; (4)Package Dissipation at TA = 25℃(Note 3): 900 mW; (5)ESD Susceptibility (Note 4), Human Body Model: 1000V; Machine Model: 200V; (6)Soldering Information SO Package (Note 5): Vapor Phase (60 seconds) 215℃; Infrared (15 seconds) 220℃; (7)Storage Temperature: -65℃ to + 150℃.

Features

LM56CIMX features: (1)Digital outputs support TTL logic levels; (2)Internal temperature sensor; (3)2 internal comparators with hysteresis; (4)Internal voltage reference; (5)Currently available in 8-pin SO plastic package; (6)Future availability in the 8-pin Mini-SO8 package.

Diagrams

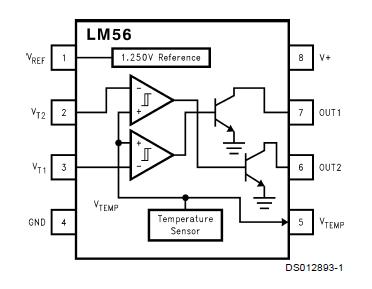

LM56CIMX pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LM56CIMX
LM56CIMX
National Semiconductor (TI)
Thermostats
Data Sheet
0-2500: $0.44
LM56CIMX/NOPB
LM56CIMX/NOPB
National Semiconductor (TI)
Thermostats
Data Sheet
0-1: $0.89
1-10: $0.80
10-25: $0.71
25-100: $0.48
