Product Summary

The lm337h is an adjustable 3–terminal negative voltage regulator capable of supplying in excess of 1.5 A over an output voltage range of -1.2 V to -37 V. This voltage regulator is exceptionally easy to use and requires only two external resistors to set the output voltage. Further, the lm337h employs internal current limiting, thermal shutdown and safe area compensation, making it essentially blow-out proof. The lm337h serves a wide variety of applications including local, on card regulation. The lm337h can also be used to make a programmable output regulator, or by connecting a fixed resistor between the adjustment and output, the lm337h can be used as a precision current regulator.

Parametrics

lm337h absolute maximum ratings: (1)Input–Output Voltage Differential, VI–VO: 40 Vdc; (2)Operating Junction Temperature Range, TJ: –40 to +125℃; (3)Storage Temperature Range, Tstg: –65 to +150℃.

Features

lm337h features: (1)Output Current in Excess of 1.5 A; (2)Output Adjustable between –1.2 V and –37 V; (3)Internal Thermal Overload Protection; (4)Internal Short Circuit Current Limiting Constant with Temperature; (5)Output Transistor Safe–Area Compensation; (6)Floating Operation for High Voltage Applications; (7)Eliminates Stocking many Fixed Voltages; (8)Available in Surface Mount D2PAK and Standard 3–Lead Transistor Package.

Diagrams

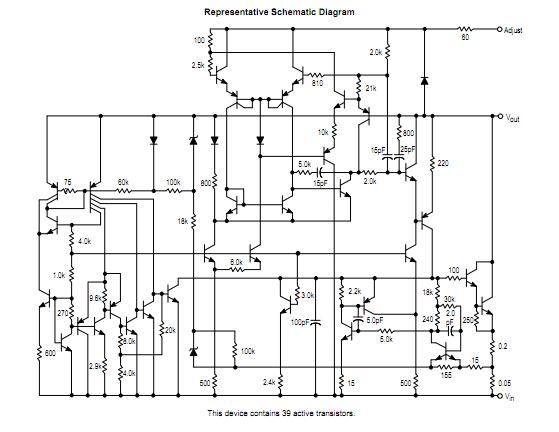

lm337h pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LM337H
LM337H
National Semiconductor (TI)
Linear Regulators - Standard
Data Sheet
0-500: $4.37
500-1000: $3.80
LM337HVK STEEL/NOPB
LM337HVK STEEL/NOPB

IC REG LDO NEG ADJ 1.5A TO-3
Data Sheet
Negotiable
LM337HVH/NOPB
LM337HVH/NOPB

IC REG LDO NEG ADJ .5A TO-39
Data Sheet
Negotiable
LM337HV
LM337HV
Other

Data Sheet
Negotiable
LM337H/NOPB
LM337H/NOPB
National Semiconductor (TI)
Linear Regulators - Standard
Data Sheet
0-1: $7.48
1-25: $6.20
25-100: $5.64
100-250: $5.08
