Product Summary

The L6562DTR is a current-mode PFC controller operating in Transition Mode (TM). Pin-to-pin compatible with the predecessor L6562DTR, it offers improved performance. The L6562DTR highly linear multiplier includes a special circuit, able to reduce AC input current distortion, that allows wide-range-mains operation with an extremely low THD, even over a large load range.

Parametrics

L6562DTR absolute maximum ratings: (1)VCC, pn 8, IC Supply voltage (Icc = 20 mA): self-limited V; (2)pin 1 to 4, Analog Inputs & Outputs: -0.3 to 8 V; (3)IZCD, pin 5, Zero Current Detector Max. Current: -50 (source), 10 (sink) mA; (4)Ptot, Power Dissipation @Tamb = 50℃: 1W (DIP-8); 0.65W(SO-8); (5)Tj, Junction Temperature Operating range: -40 to 150 ℃; (6)Tstg, Storage Temperature: -55 to 150 ℃.

Features

L6562DTR features: (1)realised in bcd technology; (2)transition-mode control of pfc preregulators; (3)proprietary multiplier design for minimum thd of ac input current; (4)very precise adjustable output overvoltage protection; (5)ultra-low (≤70μa) start-up current; (6)low (≤4 ma) quiescent current; (7)extended ic supply voltage range; (8)on-chip filter on current sense.

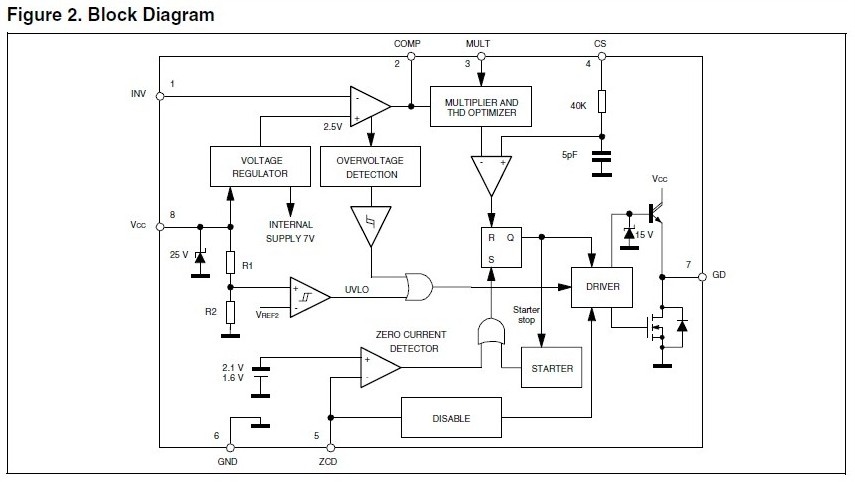

Diagrams

l6562dtr pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
L6562DTR
L6562DTR

STMicroelectronics

Power Factor Correction ICs Trans Mode PFC Cont

Data Sheet

0-1: $0.73
1-10: $0.58
10-100: $0.51
100-250: $0.45
