Product Summary

The iva-14228-blk is a variable gain amplifier. The iva-14228-blk is housed in a miniature hermetic ceramic surface mount package. Both devices can be used in any combination of single-ended or differential inputs or outputs (see Functional Block Diagram). The lowest frequency of operation is limited only by the values of user selected blocking and bypass capacitors.

Parametrics

iva-14228-blk absolute maximum ratings: (1)V CC-V EE Device Voltage, Tcase = 25°C: 12 Volts; (2)Pin Input Power, Tcase = 25°C: 13 dBm; (3)V GC-V EE Control Voltage, Tcase = 25°C: 10 Volts; (4)Ti Junction Temperature+: 200 °C; (5)Tstg Storage Temperature: -65 to +200 °C; (6)Pt Total Device Dissipation: 1000 mW.

Features

iva-14228-blk features: (1)Differential Input and Output Capability; (2)DC to 2.5 GHz Bandwidth; 3.4 Gbits/s Data Rates; (3)High Gain: 24 dB Typical; (4)Wide Gain Control Range: 34 dB Typical; (5)6 V Bias; (6)5 V VGC Control Range,IGC <3 mA; (7)Fast Gain Response: <10 nsec Typical; (8)VA-14208: Low Cost Plastic Surface Mount Package; (9)VA-14228: Hermetic Ceramic Surface Mount Package.

Diagrams

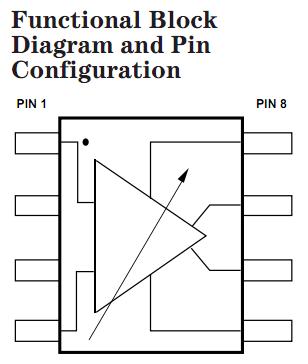

iva-14228-blk block diagram
