Product Summary

The il207at (moc207) is a phototransistor small outline surface mount optocoupler. Signal information, including a DC level, can be transmitted by the il207at (moc207) while maintaining a high degree of electrical isolation between input and output. The il207at (moc207) come in a standard SOIC-8 small outline package for surface mounting which makes them ideally suited for high density applications with limited space. In addition to eliminating through-holes requirements, this package conforms to standards for surface mounted devices.

Parametrics

il207at (moc207) absolute maximum ratings: (1)Peak Reverse Voltage : 6.0 V; (2)Continuous Forward Current : 60 mA; (3)Power Dissipation at 25°C : 90 mW; (4)Derate Linearly from 25°C : 1.2 mW/°C; (5)Collector-Emitter Breakdown Voltage : 70 V; (6)Emitter-Collector Breakdown Voltage : 7 V; (7)Collector-Base Breakdown Voltage : 70 V; (8)Power Dissipation : 150 mW; (9)Derate Linearly from 25°C : 2.0 mW/°C; (10)Storage Temperature : –55°C to +150°C; (11)Operating Temperature : –55°C to +100°C.

Features

il207at (moc207) features: (1)High BVCEO, 70 V; (2)Isolation Voltage, 2500 VACRMS; (3)Industry Standard SOIC-8 Surface Mountable Package; (4)Standard Lead Spacing, .05; (5)Available in Tape and Reel (suffix T)(Conforms to EIA Standard RS481A); (6)Compatible with Dual Wave, Vapor Phase and IR Reflow Soldering; (7)Underwriters Lab File #E52744 (Code Letter P).

Diagrams

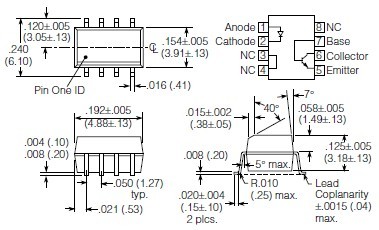

il207at (moc207) pin connection
