IL207AT

IL207AT, phototransistor small outline surface mount optocoupler

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.29~0.29 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 2000 :	0.29 / Piece

PartNumber:: IL207AT

Brand:: Infineon Technologies AG - Infineon | Pack: SOIC | D/C: 03+

Availability:: Supply Ability: 100/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-04

From Other Seller

Part Number:IL207AT
US $0.29 - 0.29
Quantity:

piece

Product Summary

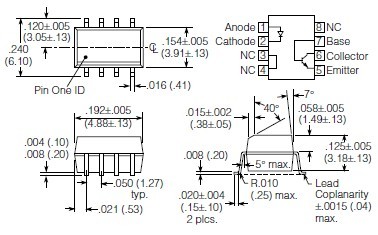

The il207at is a phototransistor small outline surface mount optocoupler. Signal information, including a DC level, can be transmitted by the il207at while maintaining a high degree of electrical isolation between input and output. The il207at come in a standard SOIC-8 small outline package for surface mounting which makes them ideally suited for high density applications with limited space. In addition to eliminating through-holes requirements, this package conforms to standards for surface mounted devices.

Parametrics

il207at absolute maximum ratings: (1)Peak Reverse Voltage : 6.0 V; (2)Continuous Forward Current : 60 mA; (3)Power Dissipation at 25°C : 90 mW; (4)Derate Linearly from 25°C : 1.2 mW/°C; (5)Collector-Emitter Breakdown Voltage : 70 V; (6)Emitter-Collector Breakdown Voltage : 7 V; (7)Collector-Base Breakdown Voltage : 70 V; (8)Power Dissipation : 150 mW; (9)Derate Linearly from 25°C : 2.0 mW/°C; (10)Storage Temperature : –55°C to +150°C; (11)Operating Temperature : –55°C to +100°C.

Features

il207at features: (1)High BVCEO, 70 V; (2)Isolation Voltage, 2500 VACRMS; (3)Industry Standard SOIC-8 Surface Mountable Package; (4)Standard Lead Spacing, .05; (5)Available in Tape and Reel (suffix T)(Conforms to EIA Standard RS481A); (6)Compatible with Dual Wave, Vapor Phase and IR Reflow Soldering; (7)Underwriters Lab File #E52744 (Code Letter P).
