Product Summary
The HT24LC08 is an 8K-bit serial read/write non-volatile memory device using the CMOS floating gate process. The HT24LC08 is optimized for use in many industrialand commercial applications where low power and low voltage operation are essential. The HT24LC08 is guaranteed for 1M erase/write cycles and 40-year data retention.
Parametrics
HT24LC08 absolute maximum ratings: (1) Operating Temperature (Commercial) : 0 to 70°C; (2) Storage Temperature: -55 to 125°C; (3) Applied VCC Voltage with Respect to VSS: -0.3 to 6V; (4) Applied Voltage on any Pin with Respect to VSS: -0.3 to Vcc +0.3V.
Features
HT24LC08 features: (1) Operating voltage: 2.2V~5.5V; (2) Low power consumption; (3) Internal organization: 1024×8; (4) 2-wire Serial Interface; (5) Write cycle time: 5ms max.; (6) Automatic erase-before-write operation; (7) 16-byte Page Write Mode; (8) Write operation with built-in timer; (9) Hardware control led write protection; (10) Commercial temperature range(0 to+70°C) .

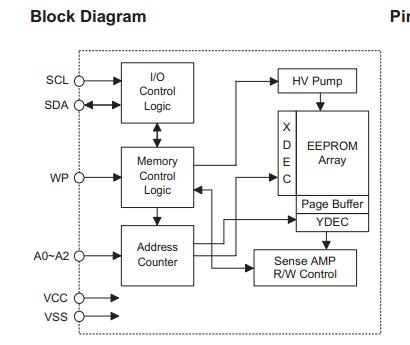

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 HT24LC08 |
Other |
|
Data Sheet |
Negotiable |
|
||||
