Product Summary
The HZU15B1TRF-EQ is a general purpose amplifier.
Parametrics
HZU15B1TRF-EQ absolute maximum ratings: (1)Collector-base voltage: 60 V; (2)Collector-emitter voltage: 50 V; (3)Emitter-base voltage: 5 V; (4)Collector current: 150 mA; (5)Base current: 30 mA; (6)Collector power dissipation: 200 mW; (7)Junction temperature: 125 °C; (8)Storage temperature range: -55~125 °C.
Features
HZU15B1TRF-EQ features: (1)Small package (Dual type); (2)High voltage and high current : VCEO = 50V, IC = 150mA (max); (3)High hFE : hFE = 120~400; (4)Excellent hFE linearity : hFE (IC = 0.1mA)/ hFE (IC = 2mA)= 0.95 (typ).

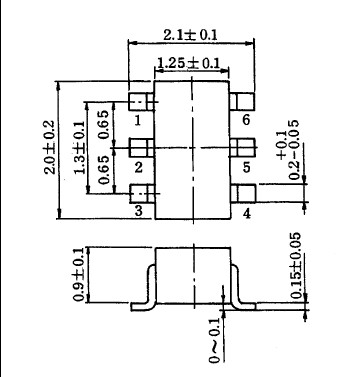

Diagrams
