HIP6601BCB-T

HIP6601BCB-T, MOSFET driver, 15V, 500 μA, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.38~1.38 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 2500 :	1.38 / Piece

PartNumber:: HIP6601BCB-T

Brand:: Elantec Semiconductor - Intersil | Pack: SOP | D/C: 04+

Availability:: Supply Ability: 100/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-10

From Other Seller

Part Number:HIP6601BCB-T
US $1.38 - 1.38
Quantity:

piece

Product Summary

The hip6601bcb-t is a high frequency, dual MOSFET driver specifically designed to drive two power N-Channel MOSFETs in a synchronous rectified buck converter topology. The hip6601bcb-t combined with a HIP63xx or the ISL65xx series of Multi-Phase Buck PWM controllers and MOSFETs form a complete corevoltage regulator solution for advanced microprocessors. Applications are (1)Core Voltage Supplies for Intel Pentium III, AMD Athlon Microprocessors; (2)High Frequency Low Profile DC-DC Converters; (3)High Current Low Voltage DC-DC Converters.

Parametrics

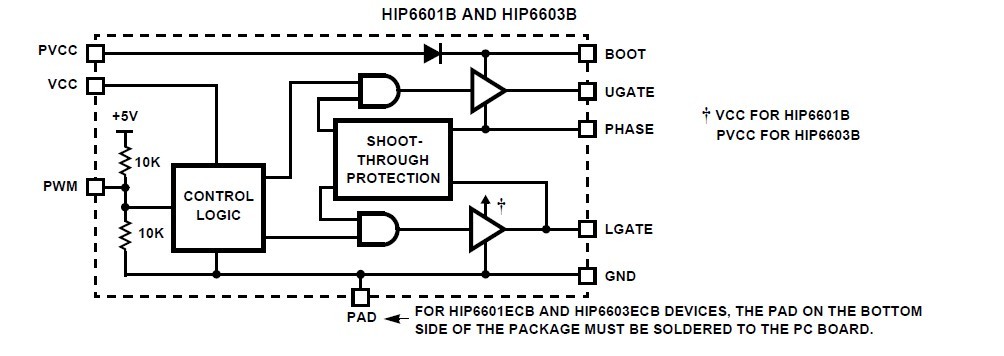

hip6601bcb-t absolute maximum ratings: (1)Supply Voltage (VCC): 15V; (2)Supply Voltage (PVCC): VCC + 0.3V; (3)BOOT Voltage (VBOOT - VPHASE): 15V; (4)Input Voltage (VPWM): GND - 0.3V to 7V; (5)Human Body Model (Per MIL-STD-883 Method 3015.7): 3kV; (6)Machine Model (Per EIAJ ED-4701 Method C-111): 200V; (7)Maximum Junction Temperature (Plastic Package): 150°C; (8)Maximum Storage Temperature Range: -65°C to 150°C; (9)Maximum Lead Temperature (Soldering 10s): 300°C; (10)Input Current IPWM VPWM = 0V or 5V (See Block Diagram): 500 μA.

Features

hip6601bcb-t features: (1)Drives Two N-Channel MOSFETs; (2)Adaptive Shoot-Through Protection; (3)Internal Bootstrap Device; (4)Supports High Switching Frequency; (5)Small 8 LD SOIC and EPSOIC and 16 LD QFN Packages; (6)Dual Gate-Drive Voltages for Optimal Efficiency; (7)Three-State Input for Output Stage Shutdown; (8)Supply Undervoltage Protection; (9)QFN Package.
