Product Summary
The HIN207IB is a 5V powered RS-232 transmitters/receivers with 0.1microfarad external capacitors. Application is any system requiring RS-232 communications ports: (1)Computer Portable, Mainframe, Laptop; (2)Peripheral Printers and Terminals; (3)Instrumentation; (4)Modems.
Parametrics
HIN207IB absolute maximum ratings: (1)VCC to Ground: (GND -0.3V)< VCC < 6V; (2)V+ to Ground: (VCC -0.3V)< V+ < 12V; (3)V- to Ground: -12V < V- < (GND +0.3V); (4)Input Voltages TIN: (V- -0.3V)< VIN < (V+ +0.3V); (5)Input Voltages RIN: ±30V; (6)Output Voltages TOUT: (V- -0.3V)< VTXOUT < (V+ +0.3V); (7)Output Voltages ROUT: (GND -0.3V)< VRXOUT < (V+ +0.3V); (8)Short Circuit Duration TOUT: Continuous; (9)Short Circuit Duration ROUT: Continuous; (10)ESD Classification: Class 1.
Features
HIN207IB features: (1)Meets All RS-232E and V.28 Specifications; (2)HIN203 and HIN205 Require No External Capacitors; (3)Requires Only 0.1μF or Greater External Capacitors; (4)High Data Rate: 120kbit/s; (5)Two Receivers Active in Shutdown Mode (HIN213); (6)Requires Only Single +5V Power Supply - (+5V and +12V - HIN201); (7)Onboard Voltage Doubler/Inverter; (8)Low Power Consumption (Typ): 5mA; (9)Low Power Shutdown Function (Typ): 1μA; (10)Three-State TTL/CMOS Receiver Outputs.

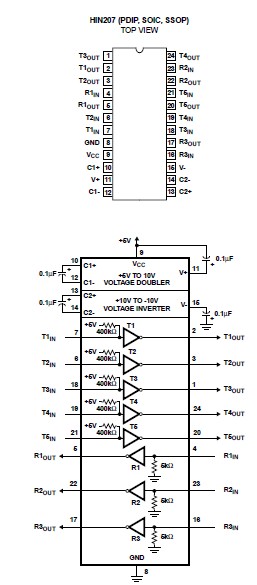

Diagrams
