Product Summary
The GS71024T-10 is a high speed CMOS static RAM organized as 65,536 words by 24 bits. The GS71024 operates on a single 3.3 V power supply, and all inputs and outputs are TTLcompatible. The GS71024 is available in a 6mm x 8mm Fine Pitch BGA package, as well as in a 100-pin TQFP package.
Parametrics
GS71024T-10 absolute maximum ratings: (1) Supply Voltage: –0.5V to +4.6V; (2) DInput Voltage: –0.5V to VDD +0.5V; (3) Output Voltage: –0.5V to VDD +0.5V; (4) Allowable TQFP power dissipation: 1W; (5) Allowable FPBGA power dissipation: 1W; (6) Storage temperature: –55°C to 150°C.
Features
GS71024T-10 features: (1) Fast access time: 8, 9, 10, 12, 15 ns; (2) CMOS low power operation: 190/170/160/130/110 mA at minimum cycle time; (3) Single 3.3 V ± 0.3 V power supply; (4) All inputs and outputs are TTL-compatible; (5) Fully static operation; (6) Industrial Temperature Option: –40 to 85°C; (7) Package: 100-pin TQFP package, 6 mm x 8 mm Fine Pitch Ball Grid Array, Pb-Free 100-pin TQFP available.

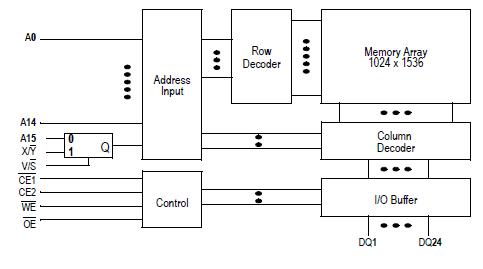

Diagrams
