Product Summary

The FS8160 is a serial data input, fully programmable dual phase-locked loop IC for use in the local oscillator subsystem of radio transceivers. When combined with external VCOs, the FS8160 becomes the core of a very low power dual frequency synthesizer wellsuited for mobile communication applications. The FS8160 is pin-compatible with National Semiconductors LMX1602 IC.

Parametrics

fs8160 absolute maximum ratings: (1)VDD,main VSS: - 0.3 to VSS + 6.5 V; (2)VDD,aux VSS: - 0.3 to VSS + 6.5 V; (3)VFIN,main VSS: - 0.3 to VDD,main + 0.3 V; (4)VFIN,aux VSS: - 0.3 to VDD,aux + 0.3 V; (5)Operating temperature range TOPR: -40 to 85 °C; (6)Storage temperature range TSTG: -40 to 125 °C; (7)Soldering temperature range TSLD: 255 °C; (8)Soldering time range tSLD: 10 s.

Features

fs8160 features: (1)Supply voltage operating range: 2.7 to 3.6 V; (2)Maximum input frequency: 1.1 GHz/1.1 GHz (main/auxiliary); (3)Low current consumption (IDD,total typically 5 mA at VDD,main = VDD,aux = 3.0 V and < 1; (4)μA in power down mode); (5)16-bit programmable input (both main and auxiliary)frequency dividers (including a ÷ 16/17 prescaler)with divide ratio range from 240 to 65535; (6)12-bit programmable reference (both main and auxiliary)frequency dividers with divide ratio range from 2 to 4095; (7)Programmable charge pump output; (8)Digital-filtered lock detect output; (9)16 pin, plastic TSSOP (0.65 mm pitch).

Diagrams

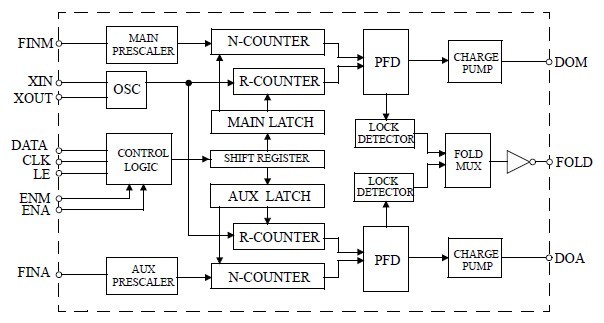

fs8160 pin connection
