Product Summary
The ep7212-cb-d is a high-performance, low-power system-on-chip. The ep7212-cb-d is designed for ultra-low-power applications such as organizers / PDAs, two-way pagers, smart cellular phones or any vertical PDA device that features the added capability of digital audio decompression. The core-logic functionality of the ep7212-cb-d is built around an ARM720T processor with 8 K-bytes of four-way set-associative unified cache and a write buffer. Incorporated into the ARM720T is an enhanced memory management unit (MMU) which allows for support of sophisticated operating systems like Microsoft Windows CE.
Parametrics
ep7212-cb-d absolute maximum ratings: (1)DC Core, PLL, and RTC Supply Voltage: 2.9 V; (2)DC I/O Supply Voltage (Pad Ring): 3.6 V; (3)DC Pad Input Current: ±10 mA/pin; ±100 mA cumulative; (4)Storage Temperature, No Power: –40°C to +125°C; (5)CI/O Transceiver capacitance: 8 to 10 pF.
Features
ep7212-cb-d features: (1)ARM7TDMI CPU; (2)8 K-bytes of four-way set-associative cache; (3)MMU with 64-entry TLB (transition look-aside buffer); (4)Write Buffer; (5) Windows CE enabled; (6)Thumb code support enabled; (7)Dynamically programmable clock speeds of 18, 36, 49, and 74 MHz at 2.5 V; (8)Performance matching 100-MHz Intel Pentium-based PC; (9)Designed for applications that require long battery life while using standard AA/AAA batteries or rechargeable cells; (10)90 mW at 74 MHz in the Operating State; (11)30 mW at 18 MHz in the Operating State; (12)10 mW in the Idle State (clock to the CPU stopped, everything else running).

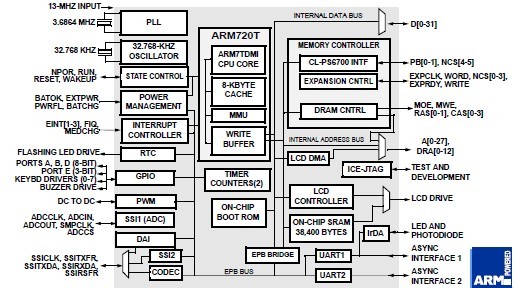

Diagrams
