Product Summary
The DS1020S-15 is a kind of Programmable 8-Bit Silicon Delay Line. It is the slowest model of DS1020. It includes an 8-bit, user-programmable CMOS silicon integrated circuit. Delay values, programmed using either the 3-wire serial port or the 8-bit parallel port, can be varied over 256 equal steps. The DS1020S-15 has a maximum delay of 520 ns with an incremental delay of 2 ns. In addition, it is designed as a reliable, economic alternative to hybrid programmable delay lines. It is available in a standard 16-pin auto-insertable DIP and a space-saving surface mount 16-pin SOIC.
Parametrics
DS1020S-15 absolute maximum ratings: (1)Voltage on any Pin Relative to Ground: -1.0V to +7.0V; (2)Operating Temperature: 0℃ to 70℃; (3)Storage Temperature: -55℃ to +125℃; (4)Soldering Temperature: 260℃ for 10 seconds; (5)Short Circuit Output Current: 50 mA for 1 second.
Features
DS1020S-15 features: (1)All-silicon time delay; (2)Models with 0.15 ns, 0.25 ns, 0.5 ns, 1 ns, and 2 ns steps; (3)Programmable using 3-wire serial port or 8-bit parallel port; (4)Leading and trailing edge accuracy; (5)Standard 16-pin DIP or 16-pin SOIC; (6)Economical; (7)Auto-insertable, low profile; (8)Low-power CMOS; (9)TTL/CMOS-compatible; (10)Vapor phase, IR and wave solderable.

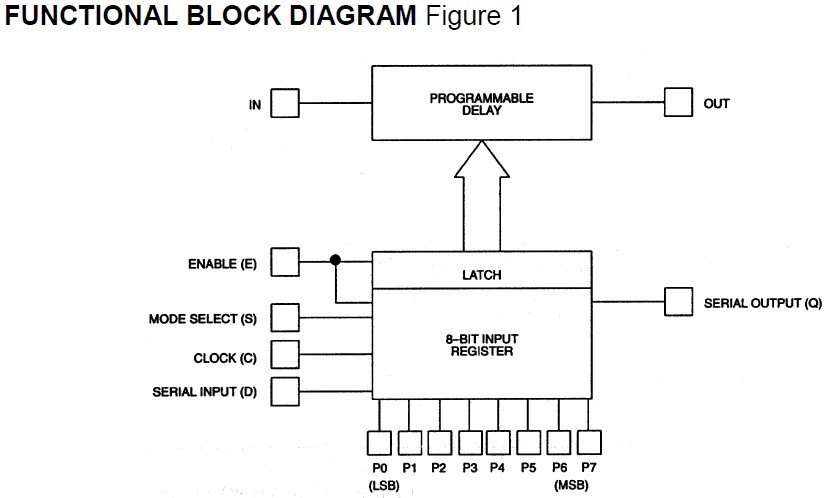

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 DS1020S-15 |
Maxim Integrated Products |
Delay Lines / Timing Elements |
Data Sheet |
Negotiable |
|
||||
|
DS1020S-15/T&R |
|
IC DELAY LINE 256TAP 16-SOIC |
Data Sheet |
Negotiable |
|
||||
 |
DS1020S-15+ |
Maxim Integrated Products |
Delay Lines / Timing Elements Programmable 8-Bit .15ns Delay Line |
Data Sheet |
Negotiable |
|
||||
|
DS1020S-15+T |
Maxim Integrated Products |
Delay Lines / Timing Elements |
Data Sheet |
Negotiable |
|
||||
