Product Summary
The DAC-08ED is an 8-bit monolithic multiplying Digital-to-Analog Converter. The DAC-08ED provides very high-speed performance coupled with low cost and outstanding applications flexibility. Applications are (1)8-bit, 1 ms A-to-D converters; (2)Servo-motor and pen drivers; (3)Waveform generators; (4)Audio encoders and attenuators; (5)Analog meter drivers; (6)Programmable power supplies; (7)CRT display drivers; (8)High-speed modems; (9)Other applications where low cost, high speed and complete input/output versatility are required; (10)Programmable gain and attenuation; (11)Analog-Digital multiplication.
Parametrics
DAC-08ED absolute maximum ratings: (1)Power supply voltage: 36 V; (2)Digital input voltage: V– to V– plus 36 V; (3)Logic threshold control: V– to V+; (4)Applied output voltage: V– to +18 V; (5)Reference current: 5.0 mA; (6)Reference amplifier inputs: VEE to VCC; (7)Maximum power dissipation Tamb = 25 °C (still-air)1 N package: 1450 mW; (8)Maximum power dissipation Tamb = 25 °C (still-air)1 D package: 1090 mW; (9)Lead soldering temperature (10 sec max): 230 °C; (10)Operating temperature range: 0 to +70 °C; (11)Storage temperature range: –65 to +150 °C.
Features
DAC-08ED features: (1)Fast settling output current—70 ns; (2)Full-scale current prematched to ±1 LSB; (3)Direct interface to TTL, CMOS, ECL, HTL, PMOS; (4)Relative accuracy to 0.1% maximum over temperature range; (5)High output compliance –10 V to +18 V; (6)True and complemented outputs; (7)Wide range multiplying capability; (8)Low FS current drift — ±10ppm/°C; (9)Wide power supply range—±4.5 V to ±18 V; (10)Low power consumption—37 mW at ±5 V.

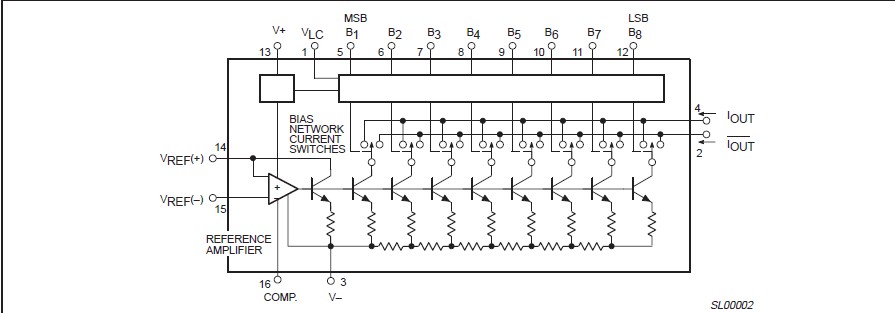

Diagrams
