Product Summary
The cs4362-kq is a complete 6-channel digital-to-analog system including digital interpolation, fifth-order deltasigma digital-to-analog conversion, digital-emphasis volume control and analog filtering. The cs4362-kq accepts PCM data at sample rates from 4kHz to 192kHz, DSD audio data,and operates over a wide power supply range.
Parametrics
cs4362-kq absolute maximum ratings: (1) DC Power Supply, Analog power, VA: -0.3 to 6V, Digital internal power VD: -0.3 to 6V, Serial data port interface power: -0.3 to 6V, Control port interface power: -0.3 to 6V; (2) Input Current,Any Pin Except Supplies IIN: ±10mA; (3) Digital Input Voltage Serial data port interface, VIND-S: -0.3 to VLS +0.4V, Control port interface VIND-C: -0.3 to VLC +0.4V; (4) Ambient Operating Temperature (power applied) TA: -55 to 125°C; (5) Storage Temperature Tstg: -65 to +150°C.
Features
cs4362-kq features: (1) 24-Bit Conversion; (2) Up to 192kHz Sample Rates; (3) 114dB Dynamic Range; (4) -100dB THD+N; (5) Supports PCM or DSD Data Formats; (6) Selectable Digital Filters; (7) Volume Control with Soft Ramp; (8) μC or Stand-Alone Operation.

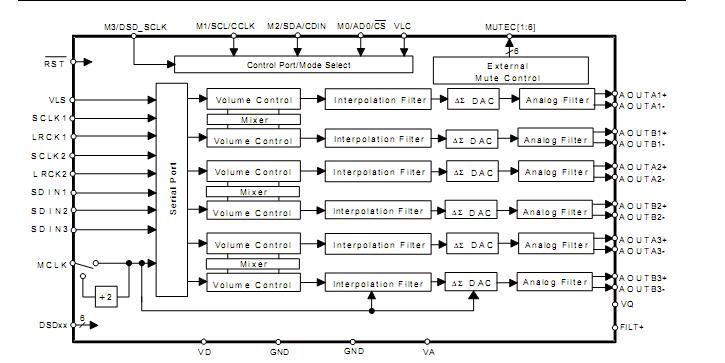

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CS4362-KQZ |
Cirrus Logic |
DAC (D/A Converters) IC 114dB 192kHz 6Ch DAC |
Data Sheet |
|
|
||||||||
 |
CS4362-KQZR |
Cirrus Logic |
DAC (D/A Converters) IC 114dB 192kHz 6Ch DAC |
Data Sheet |
|
|
||||||||
