Product Summary
The CS4330-KS is a complete, stereo digital-to-analog output system including interpolation, 1-bit D/A conversion and output analog filtering in an 8- pin package. The CS4330-KS differs in the serial interface format used to input audio data. The CS4330-KS is based on deltasigma modulation, where the modulator output controls the reference voltage input to an ultra-linear analog lowpass filter.
Parametrics
CS4330-KS absolute maximum ratings: (1)DC Power Supply: VA+: -0.3 to 6.0 V; (2)Input Current, Any Pin Except Supplies Iin: ±10 mA; (3)Digital Input Voltage VIND: -0.3 to (VA+)+0.4 V; (4)Ambient Operating Temperature (power applied)TA: -55 to 125 °C; (5)Storage Temperature Tstg: -65 to 150 °C.
Features
CS4330-KS features: (1)Compete Stereo DAC System: Interpoation, D/A, Output Anaog Fitering; (2)18-Bit Resoution; (3)94 dB Dynamic Range; (4)0.003% THD; (5)Low Cock Jitter Sensitivity; (6)Singe +3 V or +5 V Power Suppy; (7)Fitered Line Leve Outputs Linear Phase Fitering; (8)On-Chip Digita De-emphasis.

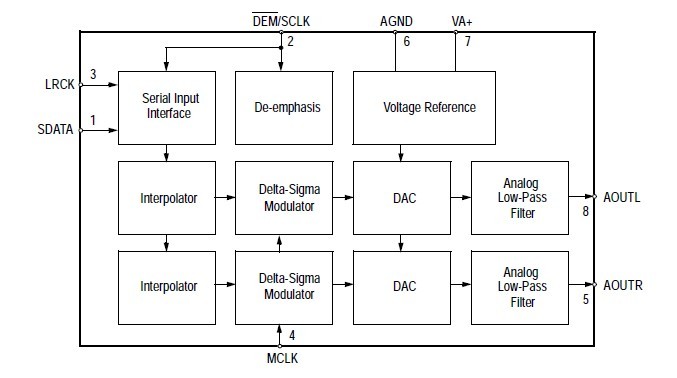

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 CS4330-KS |
Cirrus Logic |
DAC (D/A Converters) IC 8-Pin Stereo DAC for Digital Audio |
Data Sheet |
Negotiable |
|
||||
|
CS4330-KSR |
Cirrus Logic |
DAC (D/A Converters) IC 8-Pin Stereo DAC for Digital Audio |
Data Sheet |
Negotiable |
|
||||
