CAT809TTBI-GT3

CAT809TTBI-GT3, supervisory circuit, 6.0 V, 20 mA, 175 mW, BGA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.07~0.07 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 21000 :	0.07 / Piece

PartNumber:: CAT809TTBI-GT3

Brand:: Catalyst Semiconductor inc - CSI | Pack: BGA | D/C: 07+

Availability:: Supply Ability: 21000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-22

From Other Seller

Part Number:CAT809TTBI-GT3
US $0.07 - 0.07
Quantity:

piece

Product Summary

The CAT809TTBI-GT3 is a supervisory circuit that monitor power supplies in digital systems. The CAT809TTBI-GT3 is direct replacement for the MAX803, MAX809 and MAX810 in applications operating over the industrial temperature range. Applications are (1)Computers; (2)Servers; (3)Laptops; (4)Cable modems; (5)Wireless communications; (6)Embedded control systems; (7)White goods; (8)Power meters; (9)Intelligent instruments; (10)PDAs and handheld equipment.

Parametrics

CAT809TTBI-GT3 absolute maximum ratings: (1)Any pin with respect to ground: -0.3V to +6.0V; (2)Input Current, VCC: 20mA; (3)Output Current, RESET, RESET: 20mA; (4)Rate of Rise, VCC: 100V/μs; (5)Continuous Power Dissipation Derate 2.2mW/ºC above 70°C (SC70): 175 mW ; (6)Continuous Power Dissipation Derate 4mW/ºC above 70°C (SOT23): 320 mW; (7)Operating Temperature Range: -40°C to +85°C; (8)Storage Temperature Range: -65°C to +105°C; (9)Lead Soldering Temperature (10 sec): 300°C.

Features

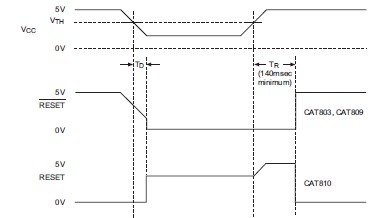

CAT809TTBI-GT3 features: (1)Precision monitoring of +5.0V (-5%, -10%, -20%), +3.3V (-5%, -10%), +3.0V (-10%)and +2.5V (-5%)power supplies; (2)Offered in three output configurations: CAT803: Open-Drain Active LOW reset; CAT809: Push-Pull Active LOW reset; CAT810: Push-Pull Active HIGH reset; (3)Direct replacements for the MAX803, MAX809 and MAX810 in applications operating over the industrial temperature range; (4)Reset valid down to VCC = 1.0V; (5)6μA power supply current; (6)Power supply transient immunity; (7)Industrial temperature range: -40°C to +85°C; (8)Available in RoHS-compliant SOT-23 and SC70 packages.
