CAT25010VI-GT3

CAT25010VI-GT3, SPI Serial CMOS EEPROM, 2 mA, 0.4 V, 10 MHz, SOIC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.13~0.13 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10000 :	0.13 / Piece

PartNumber:: CAT25010VI-GT3

Brand:: Catalyst Semiconductor inc - CSI | Pack: | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-12

From Other Seller

Part Number:CAT25010VI-GT3
US $0.13 - 0.13
Quantity:

piece

Product Summary

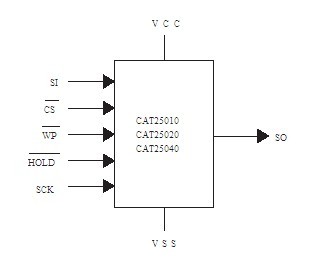

The CAT25010VI-GT3 is a 1K Bit SPI Serial CMOS EEPROM internally organized as 128x8 bits. Catalyst advanced CMOS Technology substantially reduces device power requirements. The CAT25010VI-GT3 features a 16-byte page write buffer. The device operates via the SPI bus serial interface and is enabled though a Chip Select (CS). The HOLD pin may be used to suspend any serial communication without resetting the serial sequence. The CAT25010VI-GT3 is designed with software and hardware write protection features including block write protection.

Parametrics

CAT25010VI-GT3 absolute maximum ratings: (1)Storage temperature: -65°C to +150°C; (2)Voltage on any pin with respect to ground(2): -0.5 V to +6.5 V; (3)Supply current: 2 mA; (4)Standby current: 2 μA; (5)Standby current: 4 μA; (6)Input leakage current: -2 to 2 μA; (7)Output leakage current: -1 to 1 μA; (8)Input low voltage: -0.5 to 0.3VCC V; (9)Input high voltage: 0.7VCC to VCC + 0.5 V; (10)Output low voltage, VCC > 2.5V, IOL = 3.0mA: 0.4 V; (11)Output high voltage, VCC > 2.5V, IOH = -1.6mA: VCC - 0.8 V; (12)Output low voltage, VCC > 1.8V, IOL = 150μA: 0.2 V; (13)Output high voltage, VCC > 1.8 V, IOH = -100μA: VCC - 0.2 V.

Features

CAT25010VI-GT3 features: (1)10 MHz SPI compatible; (2)1.8 to 5.5 Volt operation; (3)SPI modes; (4)16-byte page write buffer; (5)Self-timed write cycle; (6)Hardware and software protection; (7)Block write protection: Protect 1/4, 1/2 or all of EEPROM array; (8)Low power CMOS technology; (9)1,000,000 program/erase cycles; (10)100 year data retention; (11)Industrial temperature range; (12)RoHS-compliant 8-lead PDIP, SOIC, TSSOP and 8-pad TDFN packages.
