Product Summary
The CAT24WC02UT is a 2K Serial CMOS E2PROM internally organized as 256 words of 8 bits each. Catalysts advanced CMOS technology substantially reduces device power requirement. The the CAT24WC02UT feature a 16-byte page write buffer. The device operates via the I2C bus serial interface, has a special write protection feature, and is available in 8-pin DIP, 8- pin SOIC or 8-pin TSSOP.
Parametrics
CAT24WC02UT absolute maximum ratings: (1)Temperature Under Bias: –55°C to +125°C; (2)Storage Temperature: –65°C to +150°C; (3)Voltage on Any Pin with Respect to Ground(1): –2.0V to +VCC + 2.0V; (4)VCC with Respect to Ground: –2.0V to +7.0V; (5)Package Power Dissipation Capability (Ta = 25°C): 1.0W; (6)Lead Soldering Temperature (10 secs): 300°C; (7)Output Short Circuit Current(2): 100mA.
Features
CAT24WC02UT features: (1)400 KHZ I2C Bus Compatible; (2)1.8 to 6.0Volt Operation; (3)Low Power CMOS Technology; (4)Write Protect Feature — Entire Array Protected When WP at VIH; (5)Page Write Buffer; (6)Self-Timed Write Cycle with Auto-Clear; (7)1,000,000 Program/Erase Cycles; (8)100 Year Data Retention; (9)8-pin DIP, 8-pin SOIC or 8 pin TSSOP; (10)Commercial, Industrial and Automotive Temperature Ranges.

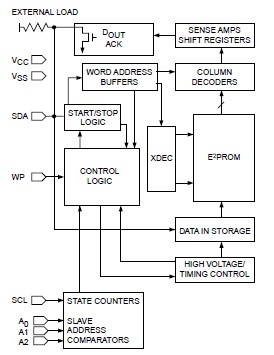

Diagrams
