Product Summary
The BU2092F is a serial-in-parallel-out driver. It incorporates a built-in shift register and a latch circuit to control a maximum of 24 LED by a 4-line interface, linked to a microcontroller. The BU2092F is designed for AV equipment such as, audio stereo sets, videos and TV sets, PCs, control microcontroller mounted equipment.
Parametrics
BU2092F absolute maxing ratings: (1)Power Supply Voltage VDD: -0.3 to +7.0 V; (2)Power dissipation 1 Pd1: 450 (SOP) mW; (3)Power dissipation 2 Pd2: 550 (SOP) mW; (4)Input Voltage VIN: VSS-0.3 to VDD+0.3 V; (5)Output Voltage Vo: VSS to +25.0 V; (6)Operating Temperature Topr: -25 to +75 ℃; (7)Storage Temperature Tstg: -55 to +125 ℃.
Features
BU2092F features: (1)LED can be driven directly.; (2)Parallel output of a maximum of 24 bit; (3)Operational on low voltage (2.7V to 5.5V).

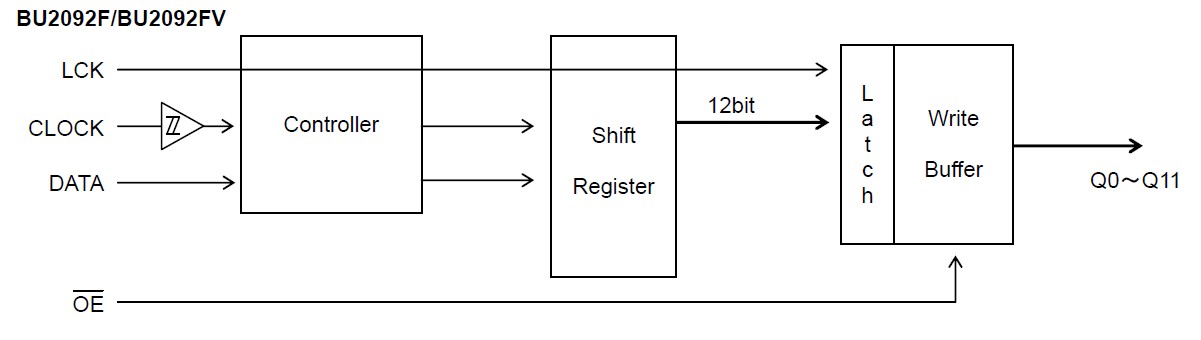

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BU2092F |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
BU2092F-E2 |
ROHM Semiconductor |
Power Driver ICs IC 12BIT S-IN P-OUT |
Data Sheet |
|
|
||||||||||||
 |
BU2092FV-E2 |
ROHM Semiconductor |
Power Driver ICs 12 BIT SERIAL-IN/ PARALLEL OUT DRIVER |
Data Sheet |
|
|
||||||||||||
|
BU2092FV |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
