Product Summary
The bh6578fvm-tr is a reversible motor driver with a wide output dynamic range, with power MOS used for the output transistor. The bh6578fvm-tr can set the output mode to four modes of normal rotation, reverse rotation, stop (idling), and braking in accordance with input logic (2 inputs). Applications of the bh6578fvm-tr are Tray loading of CD/DVD, applications using DC motors.
Parametrics
bh6578fvm-tr absolute maximum ratings: (1)Supply Voltage Vcc: 7 V; (2)Power dissipation Pd: 0.55W; (3)Operating temperature Topr: -35~+85°C; (4)Storage temperature Tstg: -55~+150 ℃; (5)Output current Iout: 500 mA; (6)Junction temperature Tjmax: 150 ℃.
Features
bh6578fvm-tr features: (1)Wide dynamic range loading driver with MOS output, Ron = 1.0Ω (Top+Bottom); (2)With loading driver voltage setting terminal; (3)Built-in thermal shutdown circuit (TSD); (4)MSOP8 package.

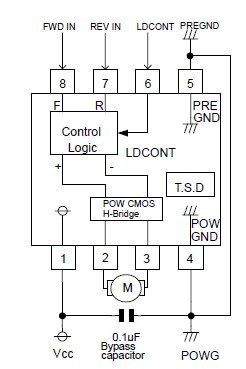

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
BH6578FVM-TR |
ROHM Semiconductor |
Motor / Motion / Ignition Controllers & Drivers REVERSE MOTOR DRIVER 8PIN |
Data Sheet |
|
|
|||||||
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||
BH6504K |
Other |
Data Sheet |
Negotiable |
|
||||||||
BH6511FS-E2 |
ROHM Semiconductor |
Power Driver ICs CD/CD-ROM/DVD DRIVER |
Data Sheet |
Negotiable |
|
|||||||
BH6526FV-E2 |
ACTUATOR/MOTOR DRIVER FOR T/R |
Data Sheet |
|
|
||||||||
BH6578FVM-TR |
ROHM Semiconductor |
Motor / Motion / Ignition Controllers & Drivers REVERSE MOTOR DRIVER 8PIN |
Data Sheet |
|
|
|||||||
BH6565FV-E2 |
PWM DRIVER FOR CD |
Data Sheet |
|
|
||||||||
BH6584KV-E2 |
IC MOTOR DVR PORTABLE CD VQFP48C |
Data Sheet |
|
|
