BH25FB1WG-TR

BH25FB1WG-TR, regulator, 150 mA, 6.5 V, 410 mW, SSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.11~0.11 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 6000 :	0.11 / Piece

PartNumber:: BH25FB1WG-TR

Brand:: Rohm - Rohm | Pack: | D/C: 08+

Availability:: Supply Ability: 6000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-02

From Other Seller

Part Number:BH25FB1WG-TR
US $0.11 - 0.11
Quantity:

piece

Product Summary

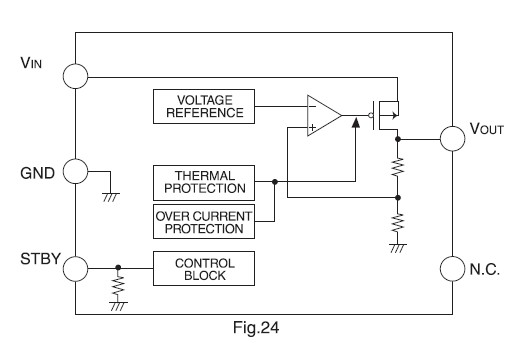

The BH25FB1WG-TR is a low dropout CMOS regulator with 150 mA and 300 mA output that have ±1% high accuracy output voltage. The BH25FB1WG-TR combines 40μA low current consumption and a 70 dB high ripple rejection ratio by utilizing output level CMOS technology. The component can be easily mounted into the small standard SSOP5 and the ultra-small HVSOF5/HVSOF6 packages. Application is battery-driven portable devices and etc.

Parametrics

BH25FB1WG-TR absolute maximum ratings: (1)Applied supply voltage, VMAX: -0.3 to +6.5 V; (2)Power dissipation, PD: 410 mW; (3)Operating temperature range, Topr: -40 to +85 ℃; (4)Storage temperature range, Tstg: -55 to +125 ℃.

Features

BH25FB1WG-TR features: (1)High accuracy output voltage: ±1%; (2)High ripple rejection ratio: 70 dB; (3)Low dropout voltage: 60 mV (when current is 100 mA); (4)Stable with ceramic output capacitors; (5)Low Bias current : 40μA (IO = 50 mA); (6)Output voltage ON/OFF control; (7)Built-in over-current protection and thermal shutdown circuits; (8)Ultra-small power package: HVSOF5.
